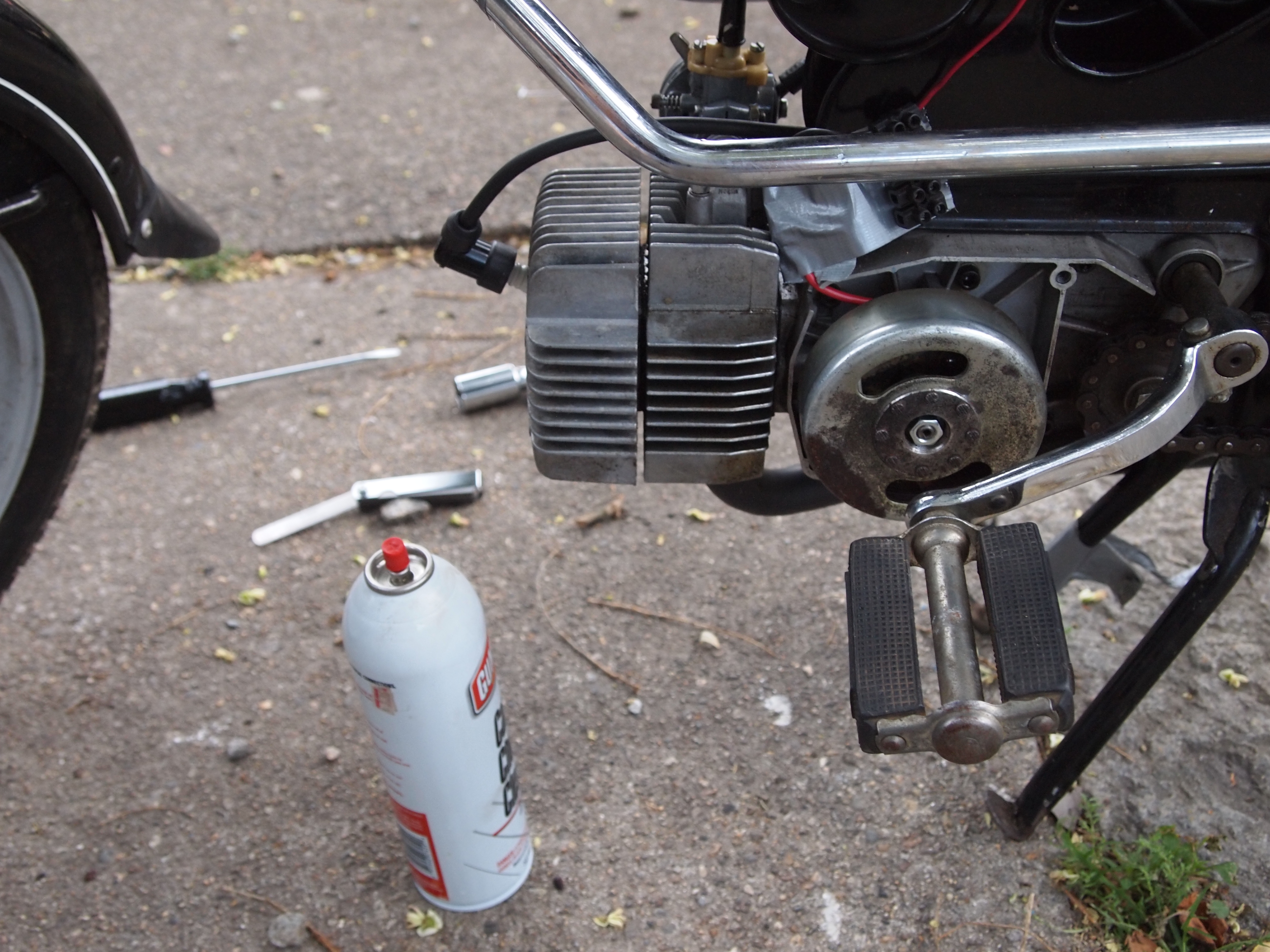

The Morini Roars!

Another day working on the ‘ped

Finally got the M02 running*!

video: click here

*After week of being solidly confused by the symptoms, and unable to get a clean plug chop (because it wouldn’t run for long enough), I found out why I had no power.  The symptoms were:

  • no power
  • no idle
  • revs up to high rpms, occasionally dies
  • after it ran, it would be hard to start

It looked like I was running rich when I checked my plugs, but it was hard to tell, since I have never seen a working moped plug, and its hard to tell from the pictures online what was is good and what was bad.  I thought that it might have been oil-fouled, and the waiting after the engine ran let the oil drip off the plug- it turns out, I was wrong.

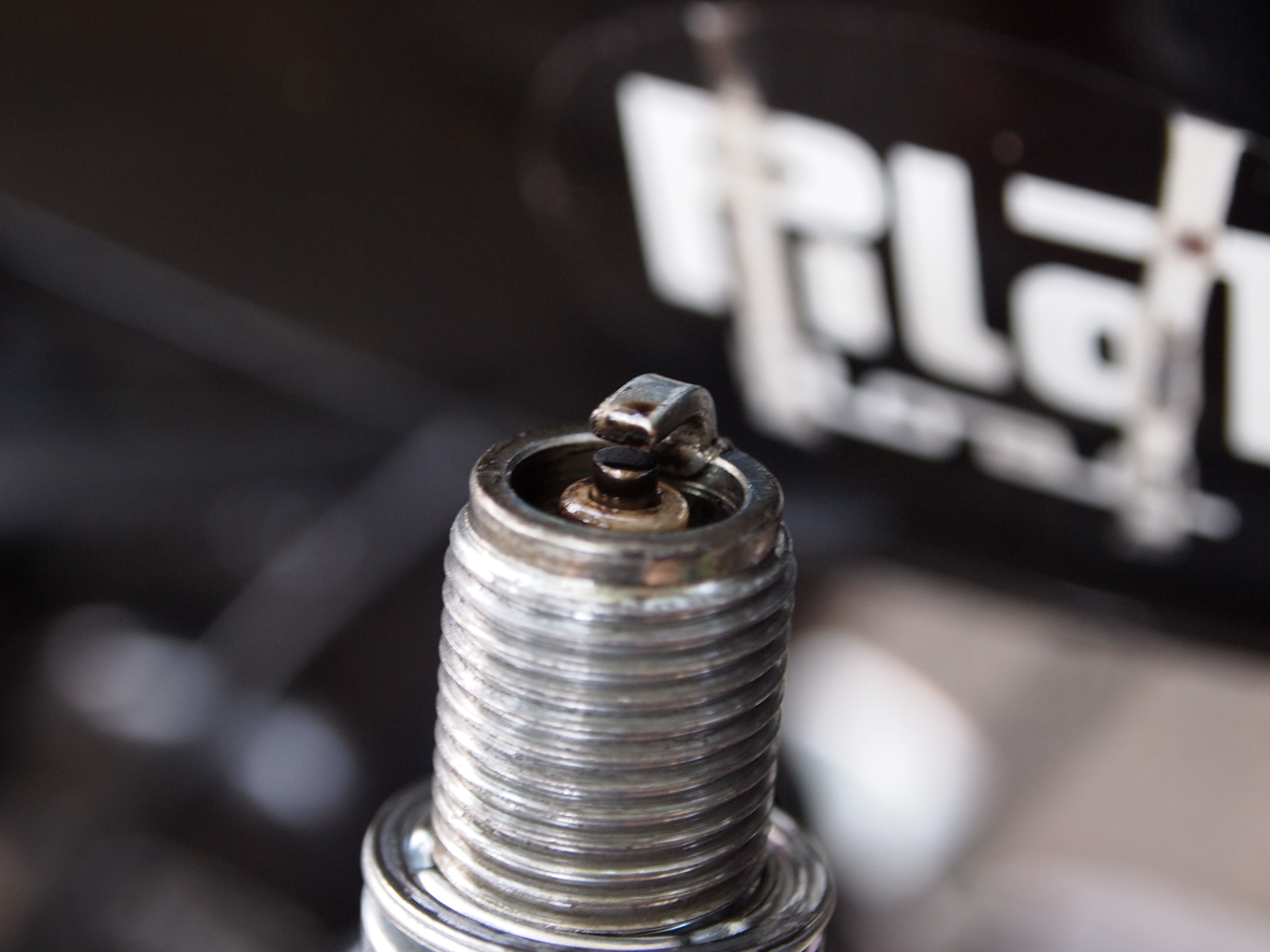

Oil fouling?

The symptoms I described are actually being caused by a vacuum leak.  I think that the cool down was needed so that the metal would shrink and re-seal.  Based on a spraydown with carb cleaner, the leak is between the head and cylinder- so I need to either make or fab a new head gasket.  I have a new stock aluminum gasket on the way, as well as gasket paper…we will see which one gets here first.  When it eventually arrives, it will be time to take the head off the cylinder, maybe sand down the mating surfaces, and then put in the new gasket.

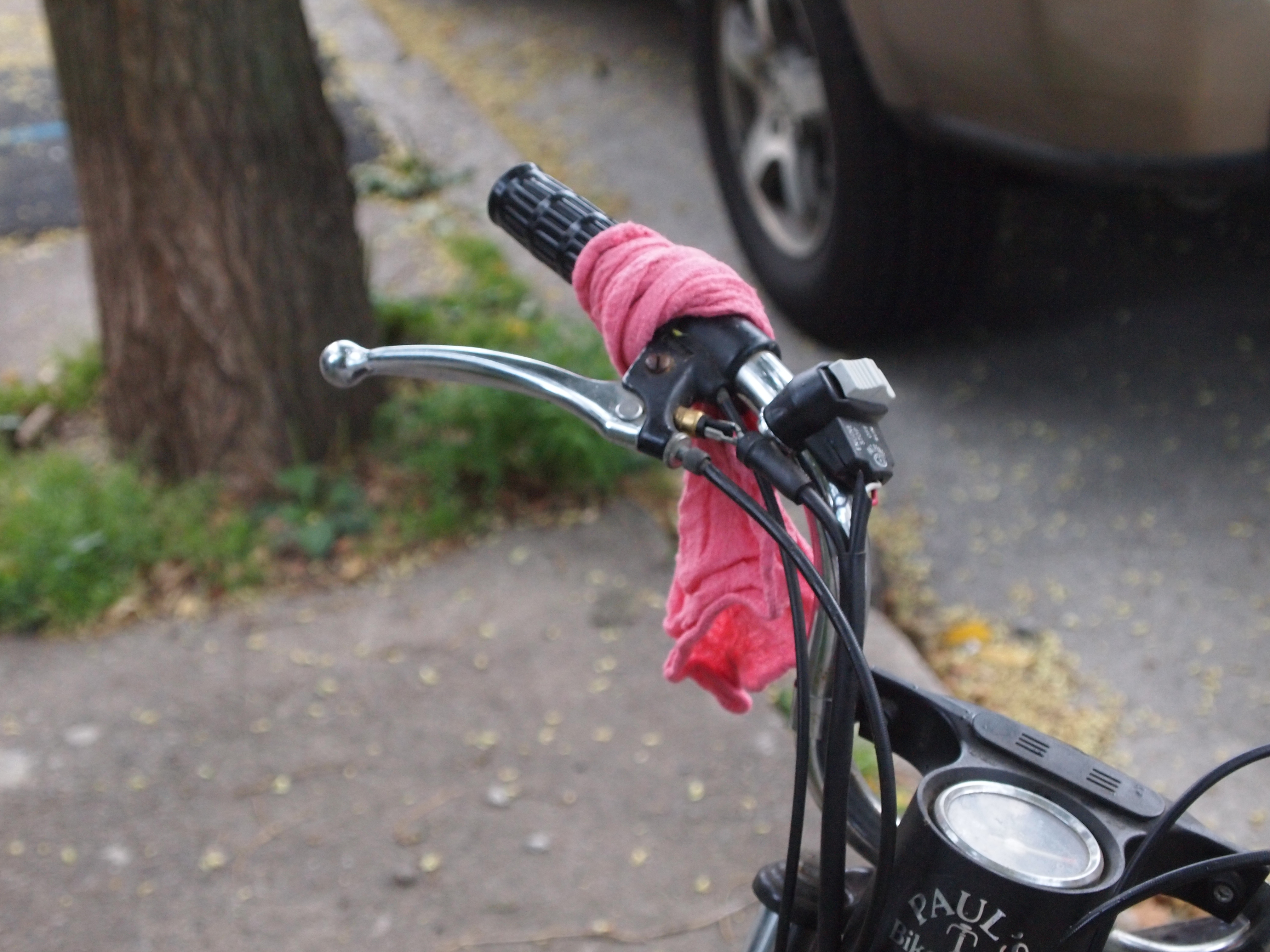

Ghetto Cruise Control (caps lock for my throttle)

The good news for this update is that I also went to harbor freight and picked up some swanky shop towels ($6 for 25!), and most importantly, a set of feeler gauges for setting the timing.  So far I have been using a piece of aluminum flashing that is about .03-.045 mm thick depending on the day, and after adjusting the points with the gauges, it started right up!  I can even start it with one hand, if i work the clutch with the other hand and tie the throttle up with one of those handy new towels.  Which I had to do to get it running for the vacuum test.

Morini Ignition Magneto Rebuild

After installing my new spark plugs and pipe, I discovered that I was no longer getting a spark, probably due to some creative tweaking of the starter coil.  Oops.  So I decided that I might as well replace my points and condenser while it was all taken apart.  This should be useful to anyone rebuilding an M01 or M02 ignition- as far as I know there is not a clear guide on how to do this elsewhere.  It may also be useful if you have another moped, especially so if you have a Dansi ignition.

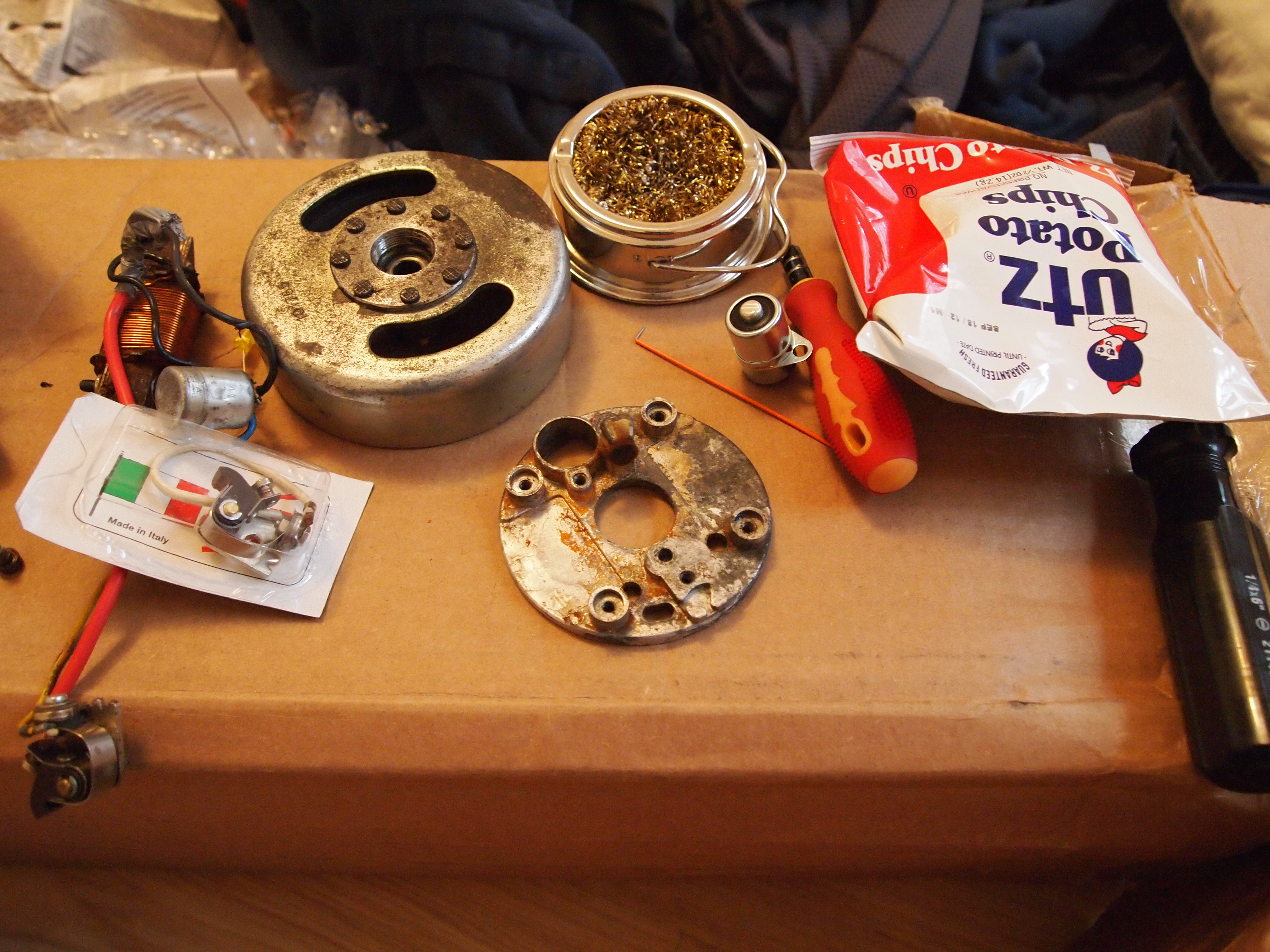

Get all your parts together on your workbench/cardboard box. Don’t forget snacks!

As you can see, the first step is to acquire a large cardboard box (or if you are lucky and have a table, use that), and put all your parts on it.  The part in the center is the stator plate, which is what the points (in the box with the Italian flag) and the condenser (round thing next to the screw driver) bolt on to.

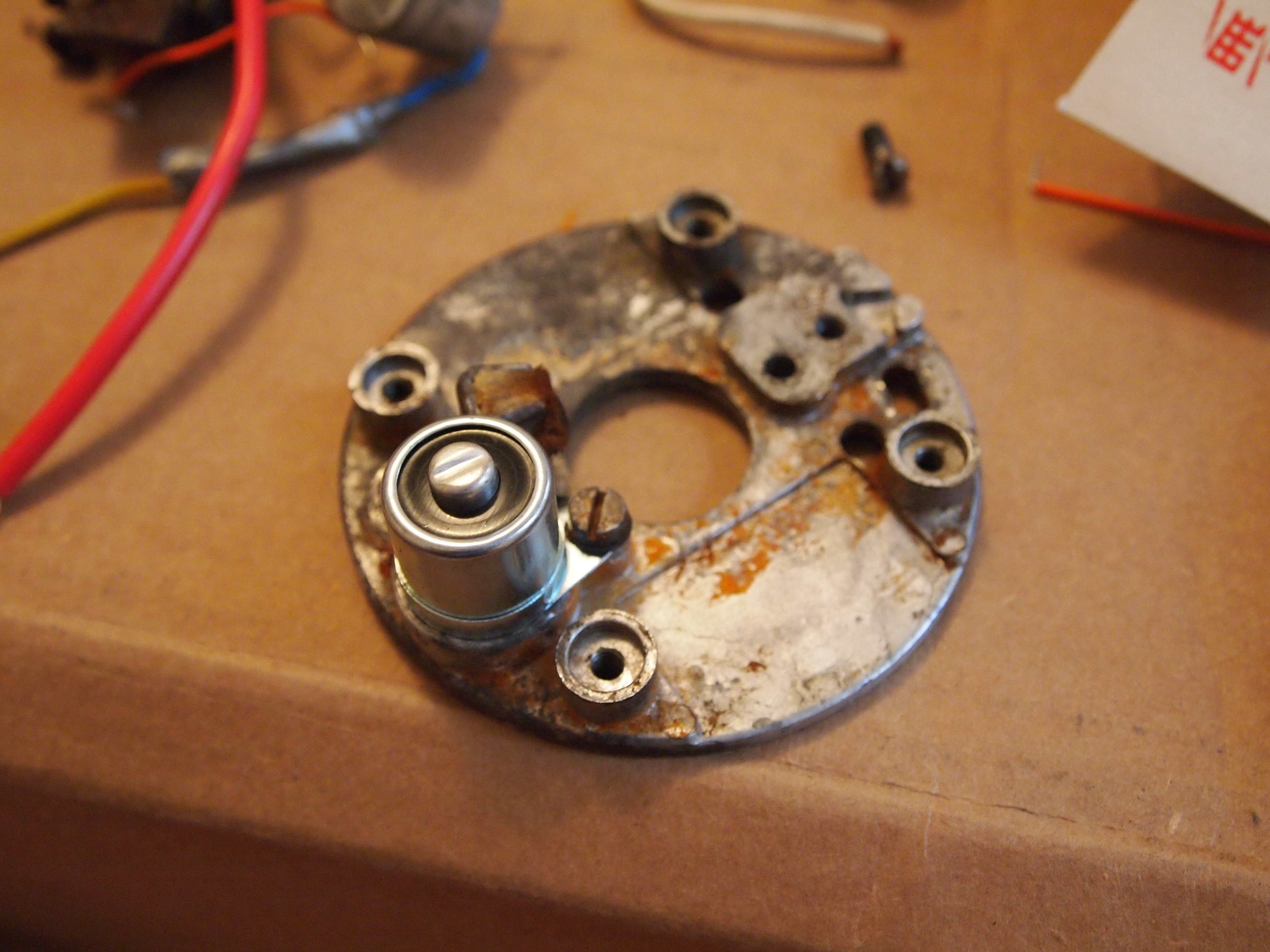

The condenser should slide right into the stator plate. Mine was an 18 mm wide X 25 mm tall condenser

The first thing to do is to bolt the condenser onto the stator plate.  Not all stators use bolts, some are held in by friction- but this one has a convenient hole that you can bolt down.  The important part is that there is a good connection from the outside of the condenser to chassis ground (which is easy, considering how big the outside of the condenser is).

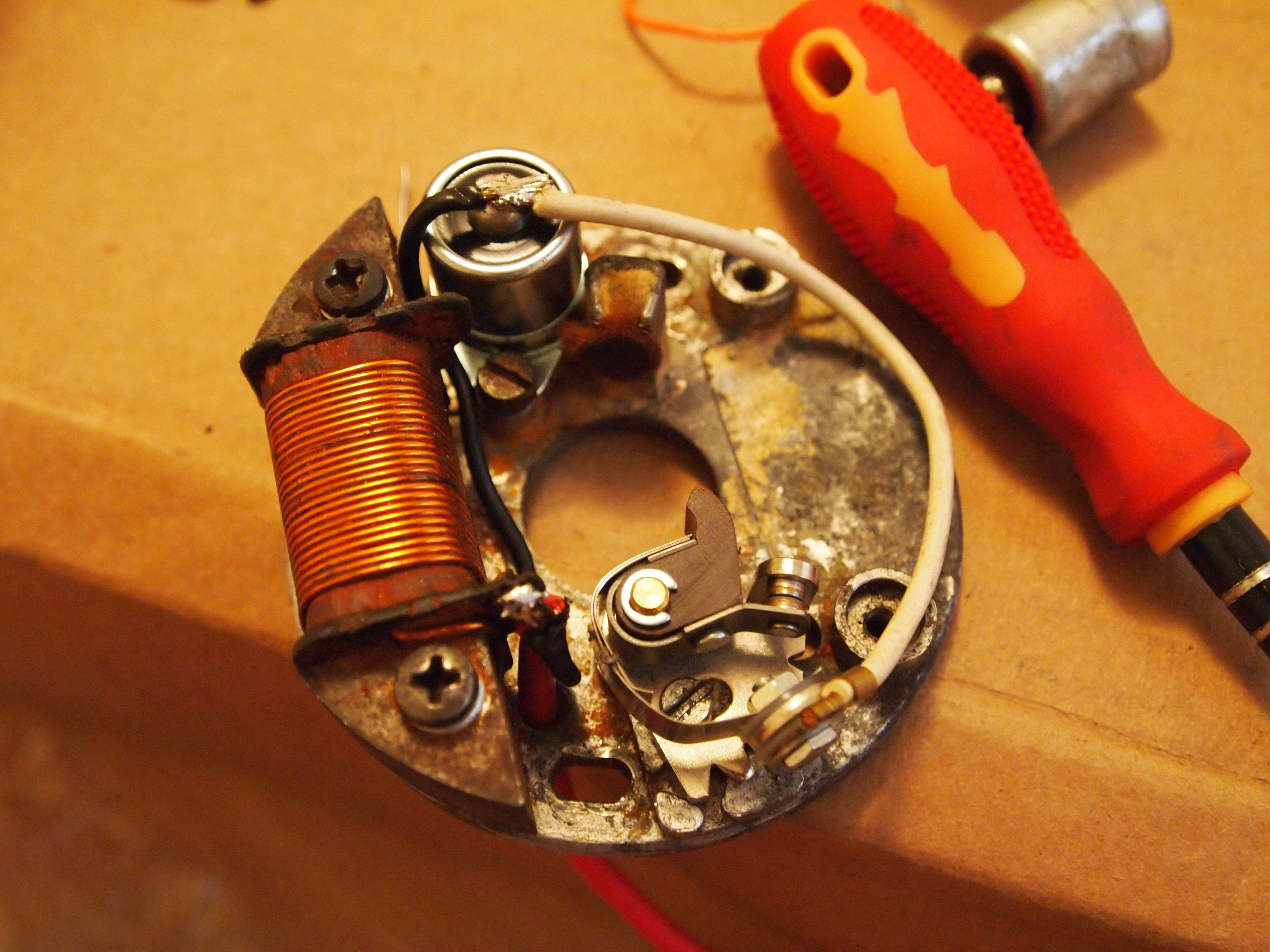

Here it is, all soldered up.

I skipped a few steps here, but the next thing to do is to screw the points in and attach the coil.  The points have a post that comes out of the bottom, that goes into a hole in the stator plate, and a slot for a screw.  The slot is very important because it allows you to adjust your point gap by changing where and how much the rubbing block engages the flywheel.  The coil is attached by two bolts, and should have only one end that comes out of it (the other goes to chassis ground).  The end that comes out of the coil should be soldered to a wire going to the condenser, and to a wire going to the high tension coil that feeds the spark plug.  Make sure to route all your wires AWAY from the outside of the plate!  Getting your wires chewed up by the flywheel is not cool.  In fact, it is so not cool that the engineers put a little hole in the stator plate, just so your wires can avoid the flywheel.  Clever.

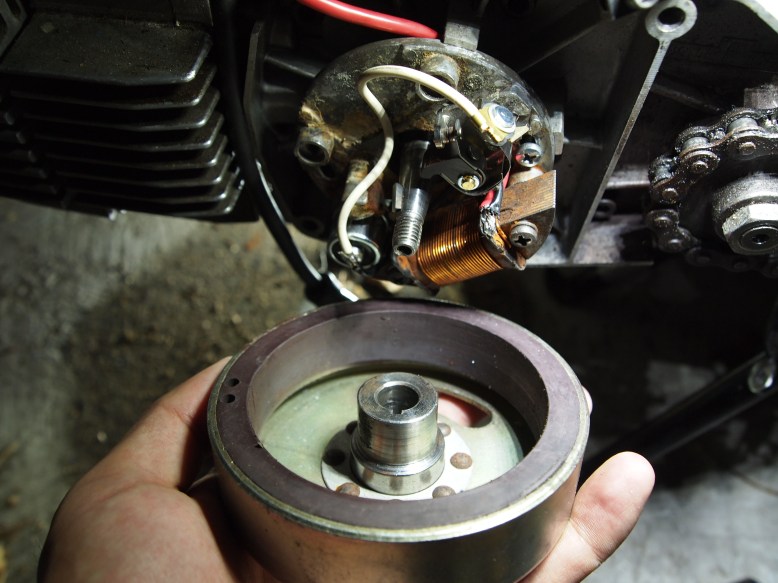

Here it is on the bike. The red wire goes to the ignition.

Here it is on the bike!  The red wire goes through a little hole in the left hand side engine cover, and the flywheel is attached to the crankshaft by the woodruff key.

Now you may be wondering…did it work?  That is still to e determined, because the woodruff key needs to be “adjusted” with a file.

Woodruff Key Removal And Replacement

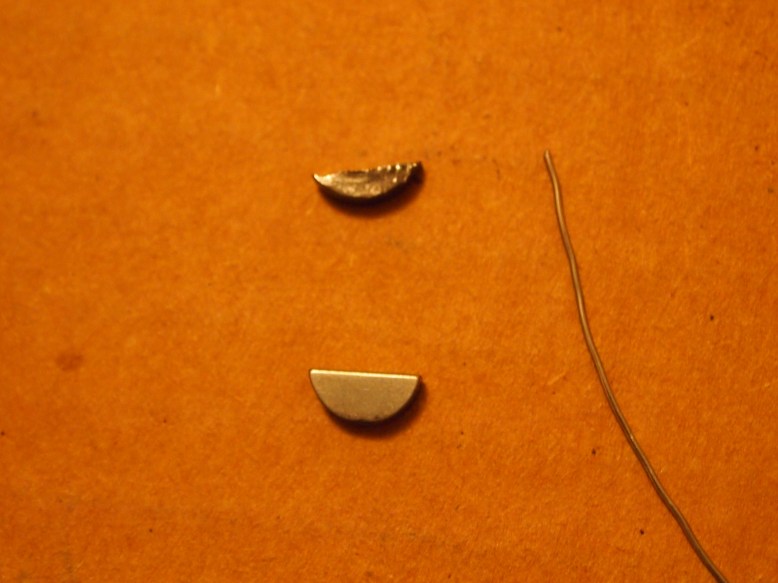

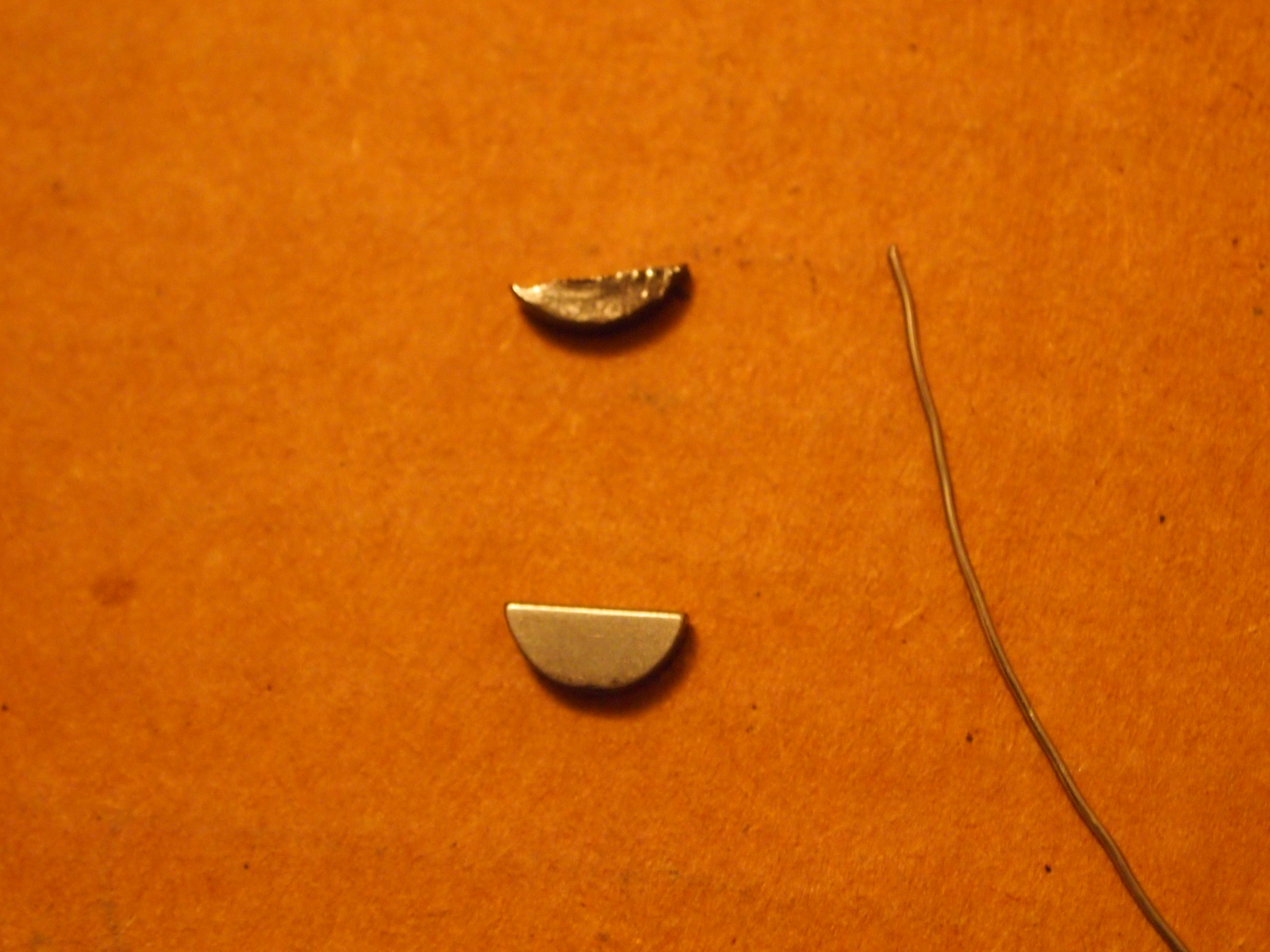

old key, new key!

A woodruff key is a semi-circular key that is very irritating to remove if it s sheared off, because the slot cut for it is round- you cant just push or pull the key out like you would with a square keyway.  Shearing, of course, something that would happen to a 50 year old moped.  I started noticing wear on the key, and in a flash it was totally gone!  Completely sheared off to the level of the crankshaft, where it is supposed to engage the flywheel to create sparks/power lights.  So of course the solution was to order a new one from treats, who shipped really fast (and is not the company who took forever to ship).

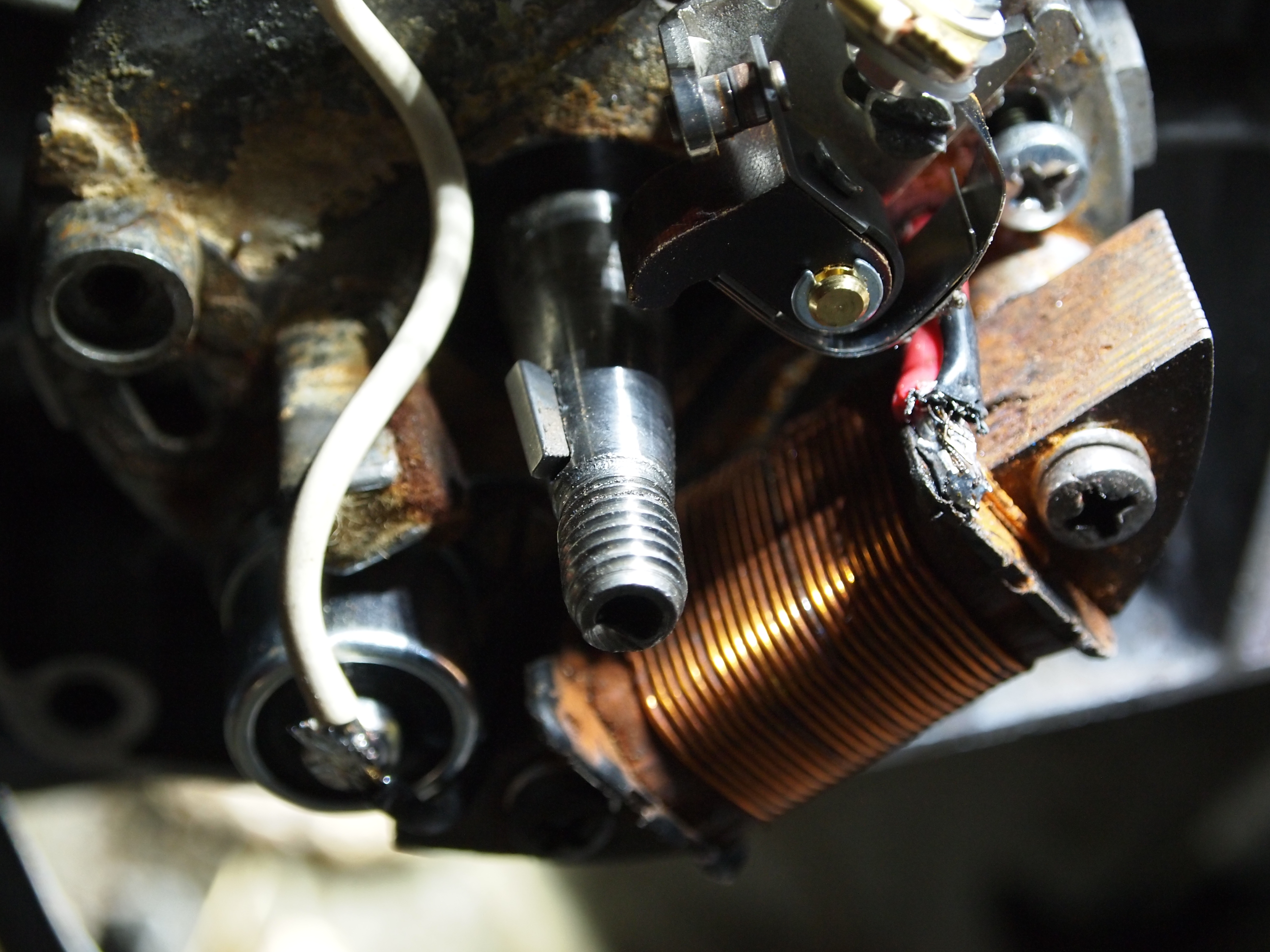

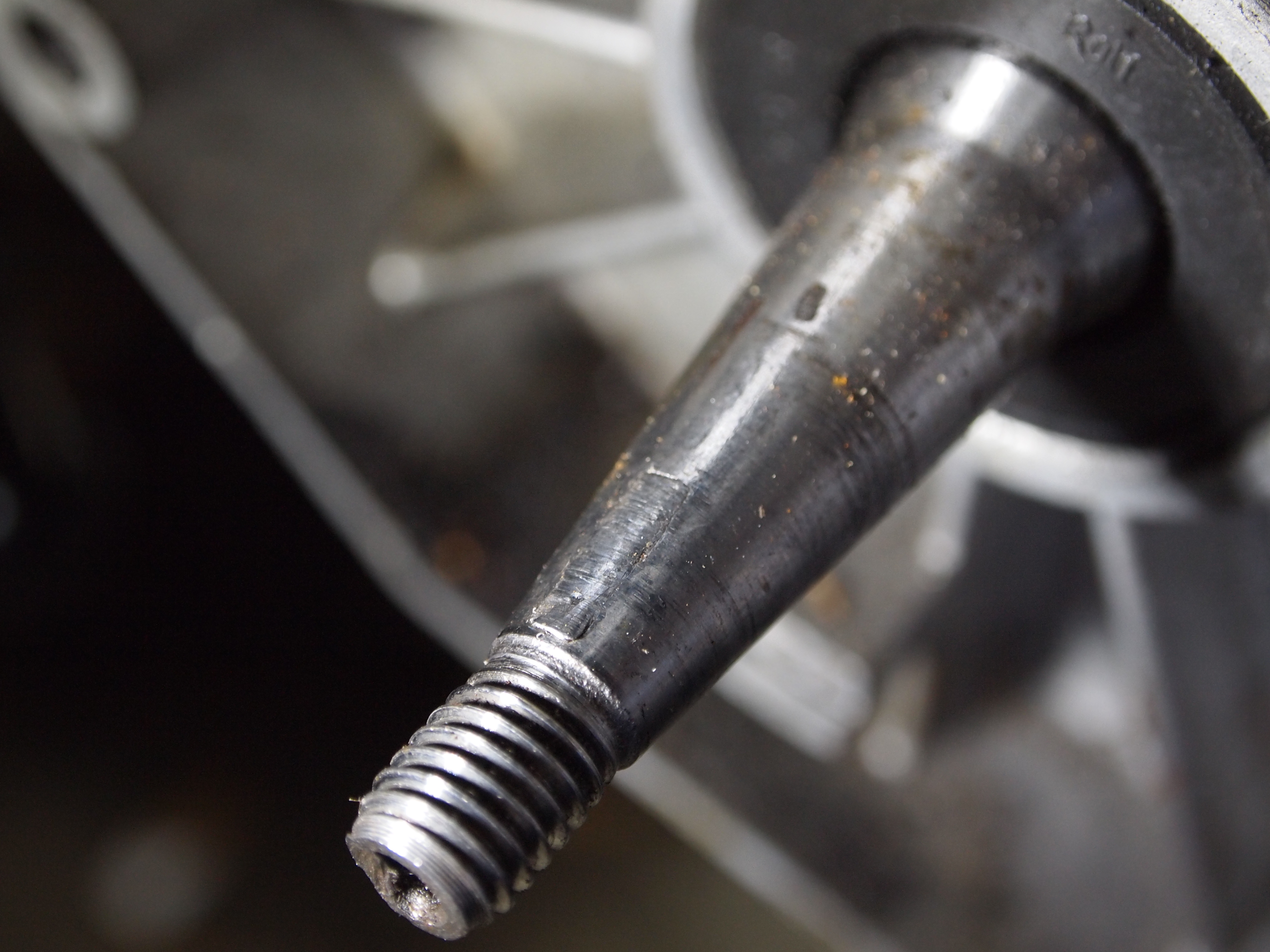

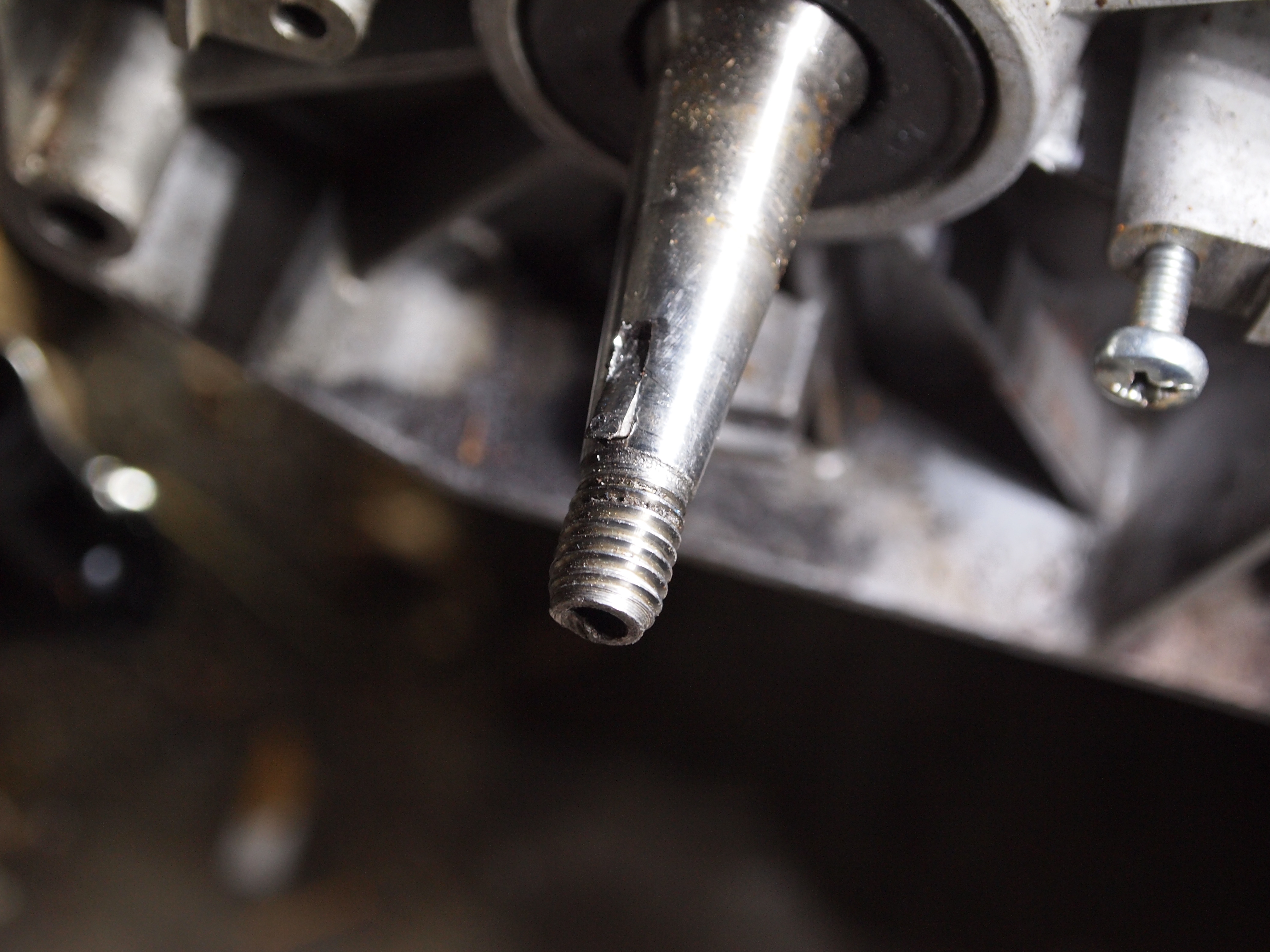

If you look closely, you can see the key that is totally sheared off in the shaft.

Once the key was in my hot little hands,  I was stuck with the task of removing the old key.  This was a daunting task- I don’t know how much abuse the bearings on the crankshaft can take, and the solution to stuck/sheared keys involves a hammer, a punch, and a steady hand.  The trick is to smack one side of the key and use it as a fulcrum to get the semicircle to rotate in its seat.  Once one side is sticking out, the key can be further loosened by smacking it so that it rotates back and forth, until it can be grasped by pliers or vice grips and yanked out.  Unfortunately, the key tends to be small- mine was 2.4 mm across, which meant that beefy punches were out of the question.  You definitely want something beefy like a center punch for this, because a pin punch of such a small diameter will bend.

After some judicious smacking, the key came loose

Once mine got a little looser, I  managed to grip it with pliers and pull it out.  It was surprisingly not that hard.  The last step was to install the new key in the slot.  True to form (for this project) it was a little small in the width department, and a little tall in the height department, so some loctite and filing may be in order.  Despite that, the new key is pretty good as far as rotating the piston/chain/magneto so I am optimistic that this will solve my no-spark issues.

Happily installed in the flywheel.

More Morini Repairs.

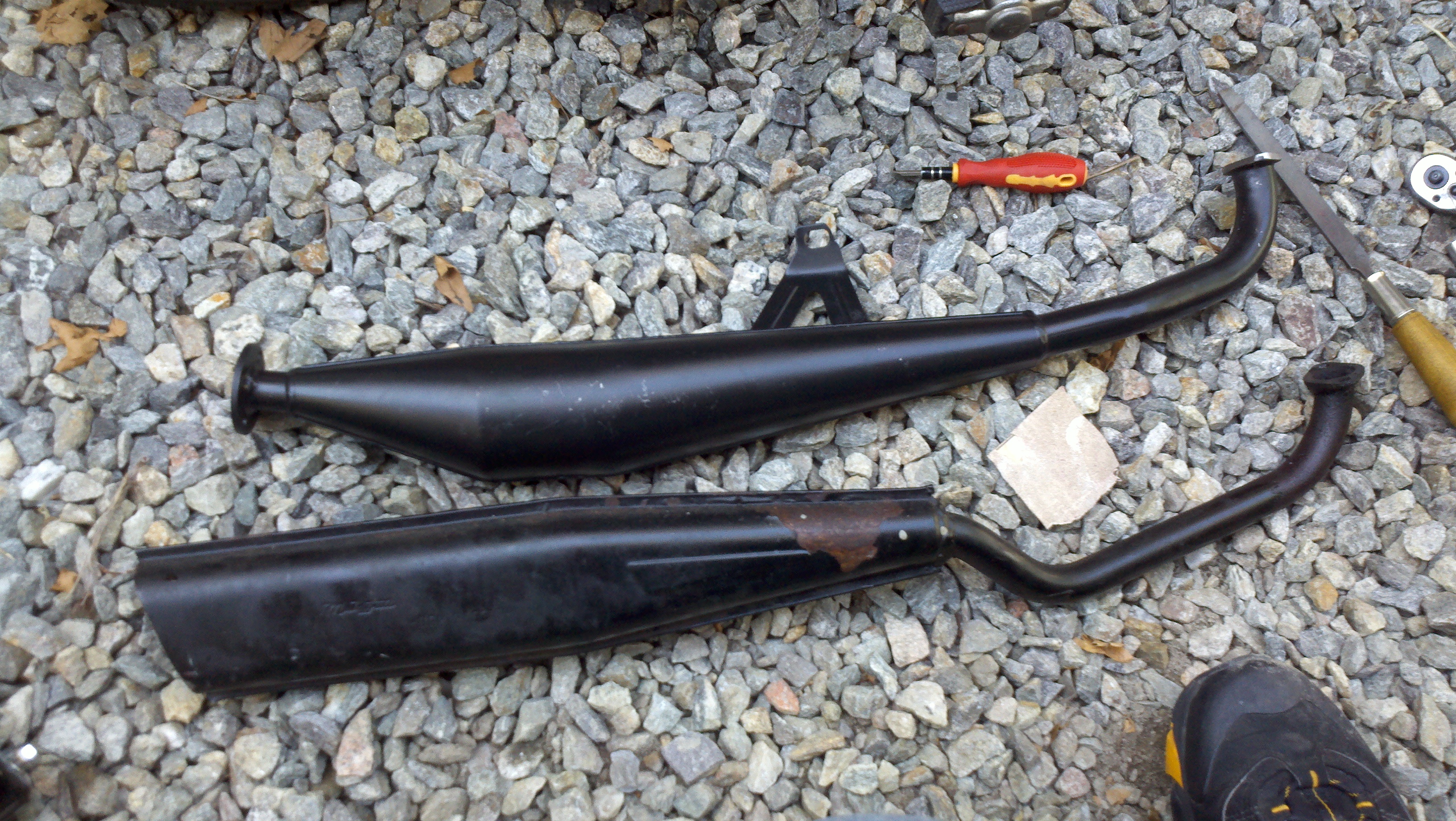

Old pipe has a nice bend so i have more clearance, new pipe is not full of carbon. Maybe the old one will make a comeback someday.

Since I knew the old pipe on my morini M02 was clogged, and also restricted, and since there was a large moped parts sale, I decided it would be a good idea to pick up a new one.  I took advantage of the sale to also pick up some carb parts.  My carb wasn’t really “broke”…but was certainly leaking.  This was no fault of the 50-year old dellorto (sha 14-12, for those who are curious), but the gas line that I installed turned out to be a smidge too big to really clamp down on the fuel banjo, not to mention that the in-line filter behind the banjo was probably clogged as well.

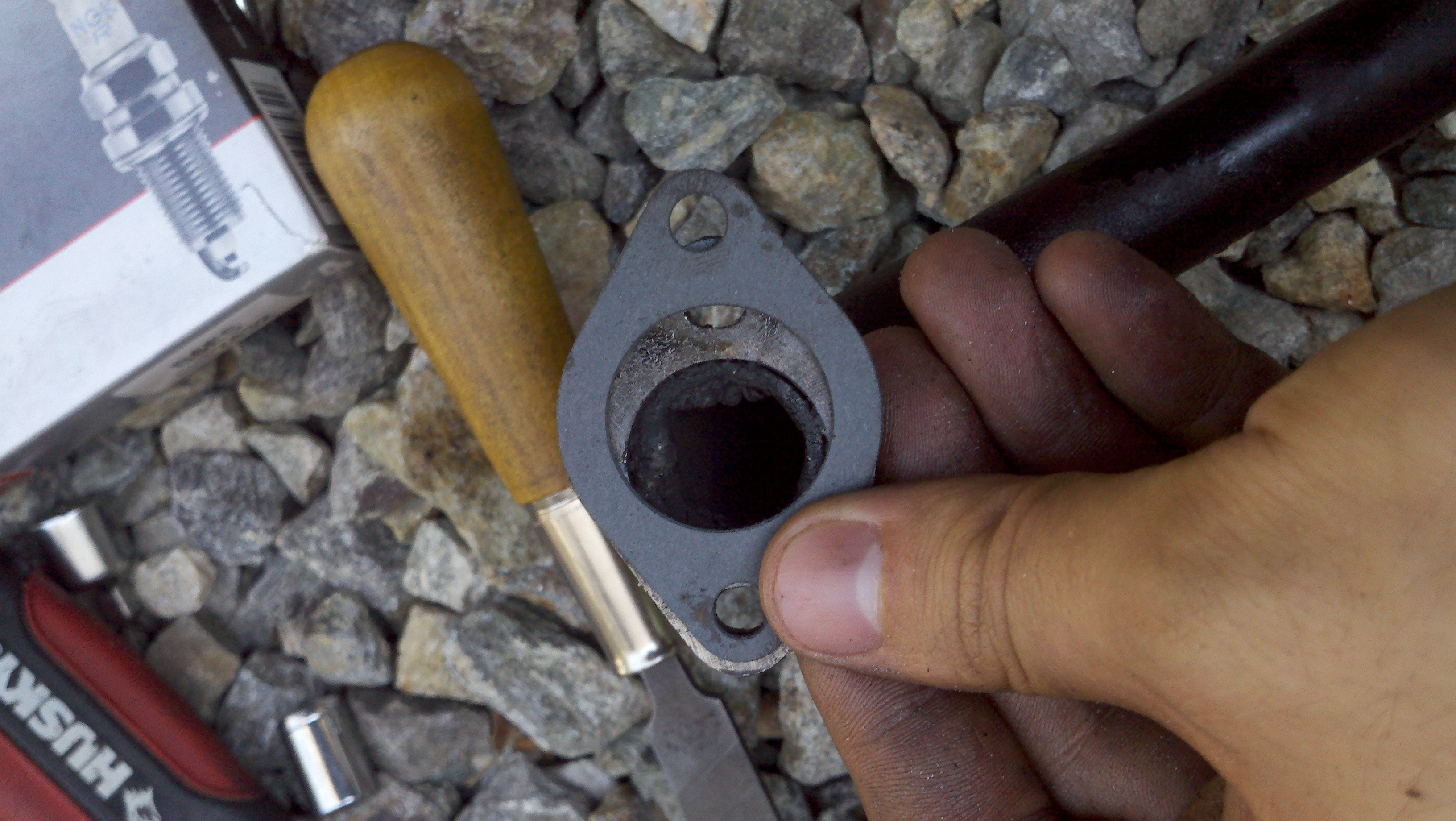

As you can see, the new gasket doesn’t fit the old exhaust header. Or the new header, for that matter. The holes are too far apart.

So, after some shipping snafus on the part of the supplier, my parts arrived about three weeks after I ordered them.  Grr.  And, true to this being a project bike, they didn’t fit!

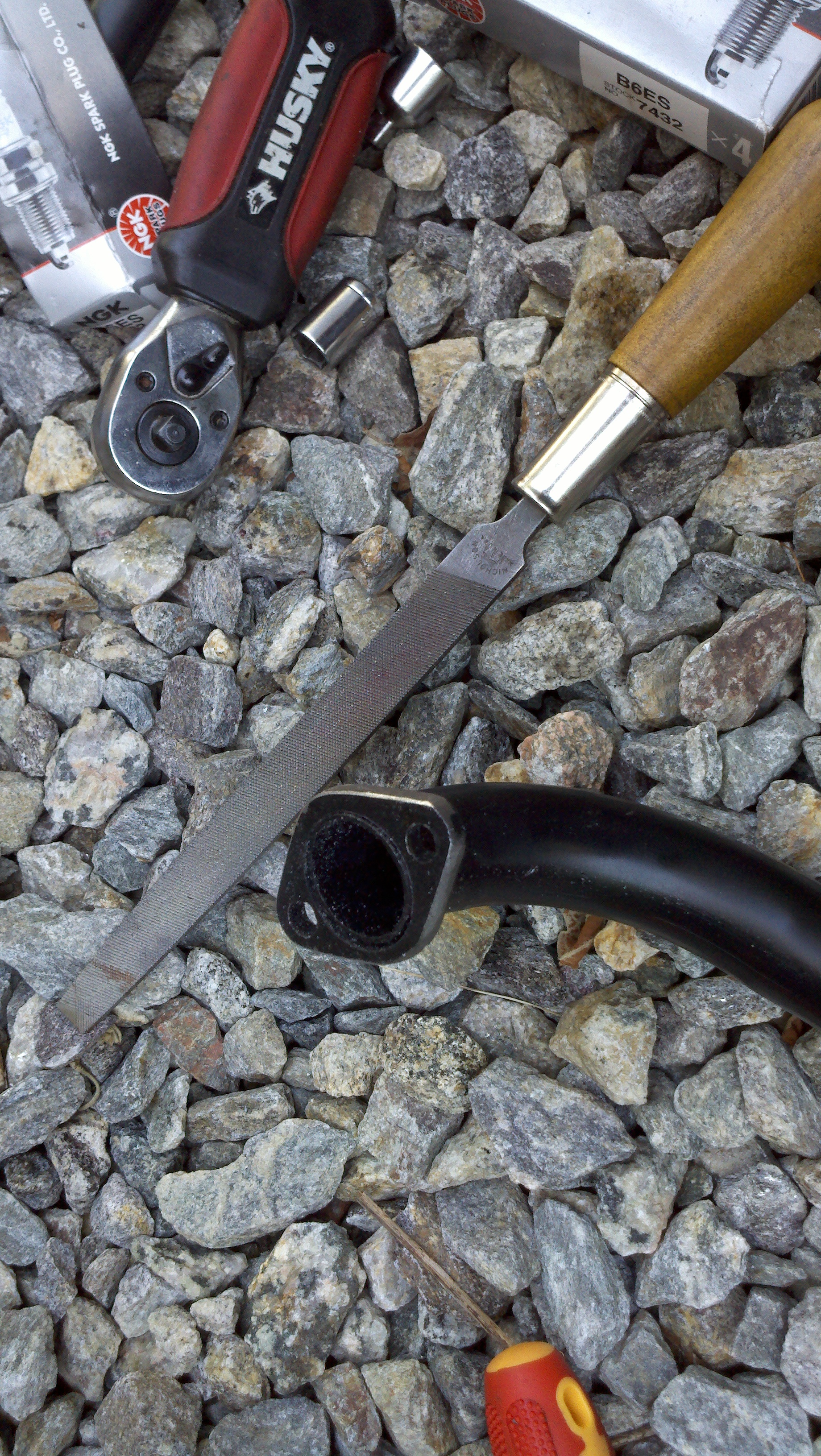

Thank goodness for tools. I had to take about .5 cm off the whole outside of the exhaust header.

The exhaust header, for the metrakit MKIII exhaust was waaay too big.  I think the cooling fins on the engine block might taper, so it is possible they just took a bad measurement and produced a bunch of exhausts that don’t fit.  I guess I will just have to expect a lot of filing and fitting in the future.

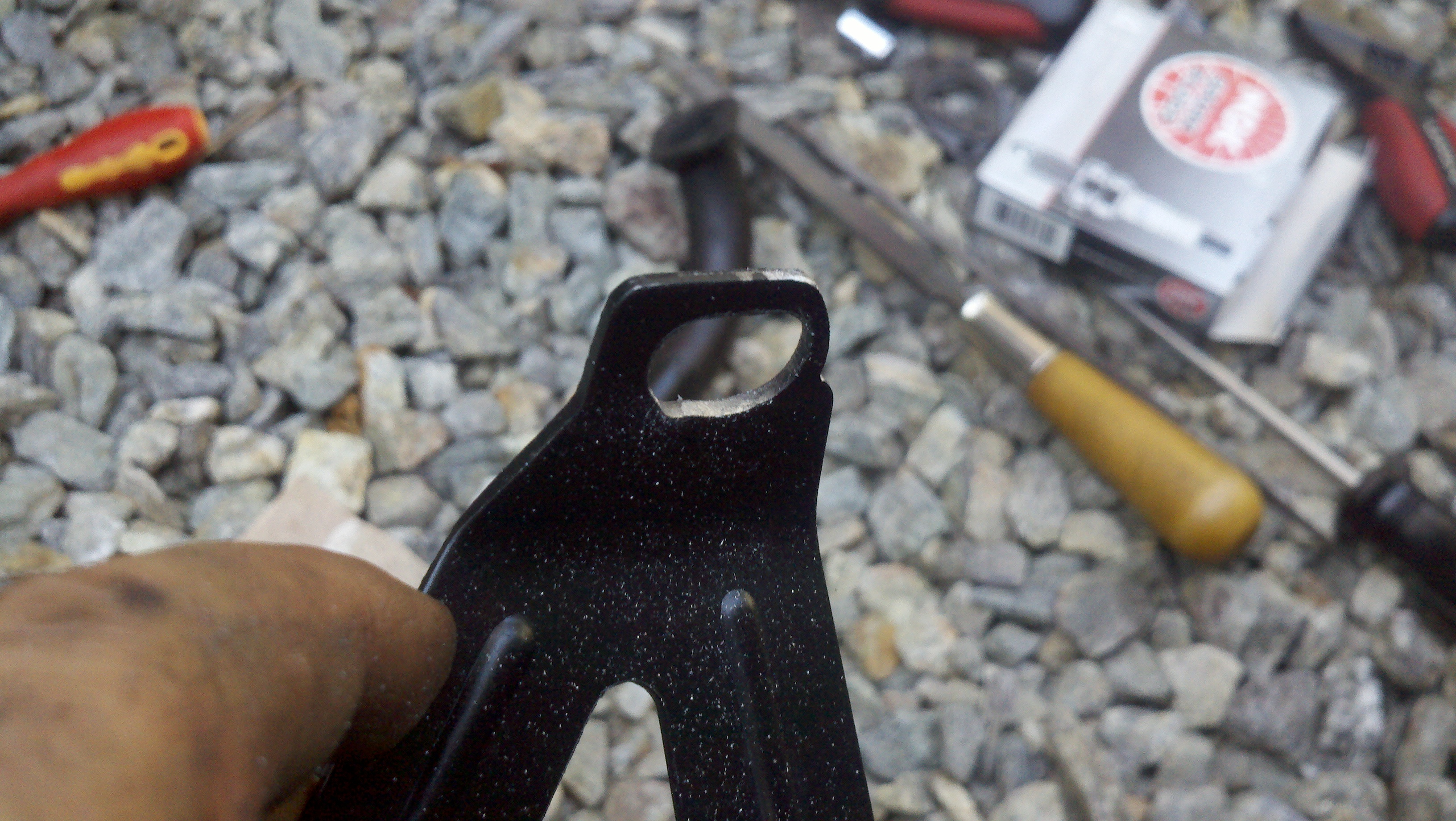

The mounting bracket needed to be enlarged. Lots of filing was required to do this.

After a lot of filing, I managed to get the exhaust to hang onto the bolt that used to have the center stand spring attached to it.  I don’t know what the final solution to the problem will be, but it may end up being some kind of hack-and-weld job that attaches the new expansion chamber to a better-angled pipe.

I also picked up some B6ES plugs from the un-named supplier, because of some advice I got from moped army, where someone pointed out that I had the wrong plugs.  oops!

Good thing someone caught that.  ES stands for “Extended”, and the extended plug is in fact, quite a bit longer than the regular plug.  In a 50 CC engine, this is kind of a big deal!  My estimate is that they were maybe 3CC larger.  If you take the original compression ratio of 7.5:1, that means that the compression with the HS plugs was roughly 6:1- which would dramatically decrease power.

Mo’ Moped Repairs.

Fixing my moped!

I will preface this story with two statements:

  • I should have known better
  • I should have brought my camera

The other day I bought a puch clutch cable from treats, thinking “YAY! The end of my clutch worries!”, but I was oh-so-wrong.  After obsessively checking the tracking, I rushed home to find a new clutch cable, knarps, and jets!  However, the nubbin on the end of the cable which had looked quite substantial on the Internet, was naught but a teeny piece of metal, no bigger than about 1mm around by 3mm long.  I’m pretty sure the puch uses the much larger toggle-shaped nubbin on the other end of the cable.  But I figured that they sold it as a starter cable, so it must work…right?

So I installed the cable and knarp, removing the bicycle shifter cable that I had previously wrapped around my clutch lever (being knarp-less at the time).  With that done, I got to work on the carb, removing it from the engine by loosening the screw on the clamp that holds it to the intake.  Of course, this meant that gasoline got EVERYHWERE, but being a moped there were only a few ccs in the float bowl.  A few clicks later, the float bowl was removed and I had access to the main jet!  I screwed the old, corroded, nasty jet out and replaced it with a fresh 50 jet.

Fast forward through carb re-assembly and attachment, fuel line replacement, and stopcock opening and I was down on the street to test it out!  I pulled on the clutch lever, and heard a small *pop*.  That pop ended that nights work, because I knew from the slack on the clutch lever that the teeny tiny nubbin had snapped off into the clutch assembly, and that the last thing I wanted to do was to grind up a tiny piece of metal with my clutch/trans, and flood the system with tiny pieces of metal to get stuck in bearings.  So I walked it to where it normally hangs out, parked it, and called it a night.

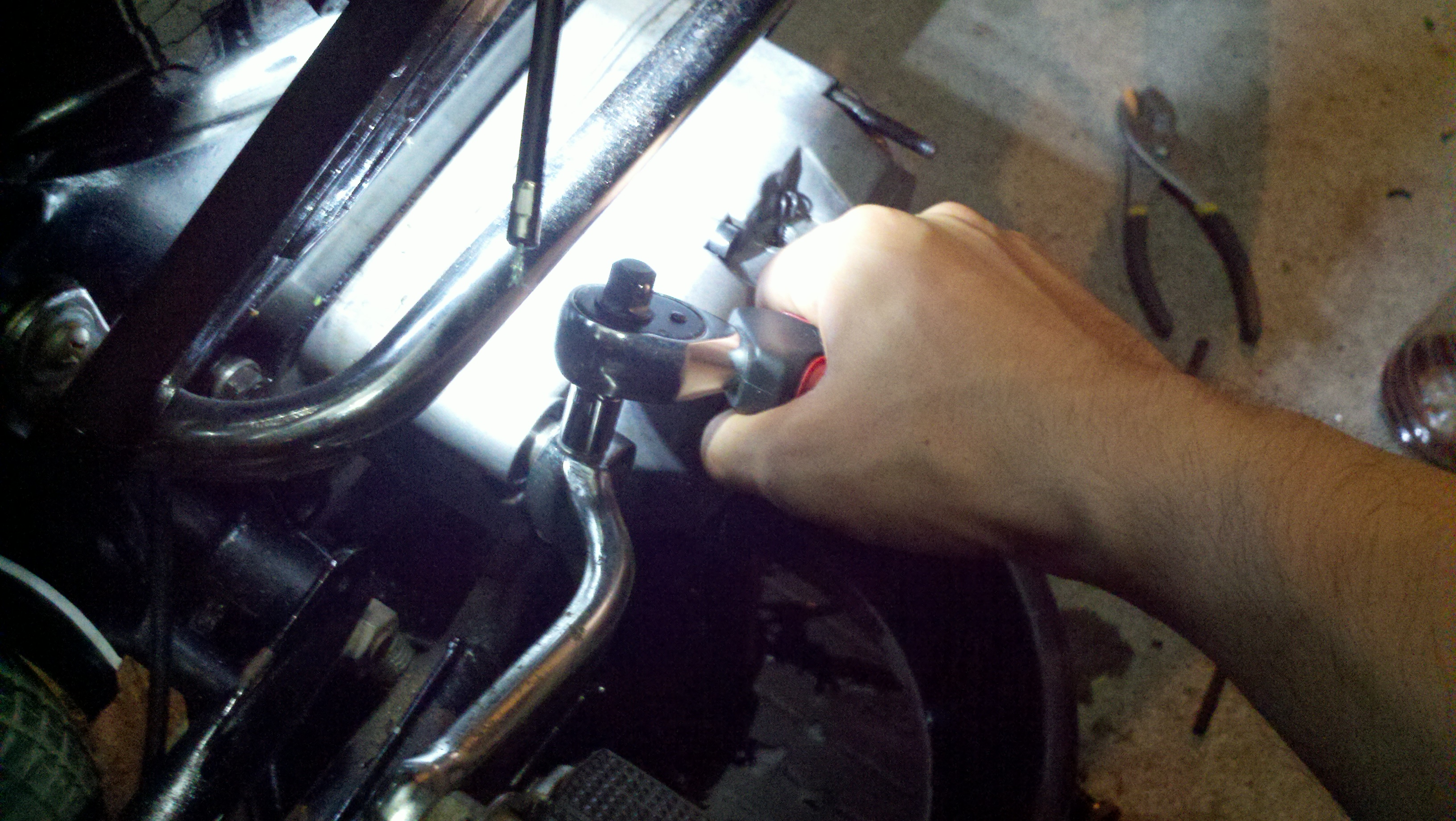

Another night of moped work. Goo everywhere

The next day I was back to working on the moped.  It was really frustrating to have been so close to testing the new jet, and then to have the clutch lever break AGAIN.  Especially after I had a hunch that it would break in exactly the unpleasant way that it broke in!

The first step, of course, was to tool up.  I grabbed an oil pan and funnel from my local (and very friendly) Tags, and some 30W ND SAE oil from, of all places, Family Dollar.  Then it was back to the moped to take apart the clutch/trans.

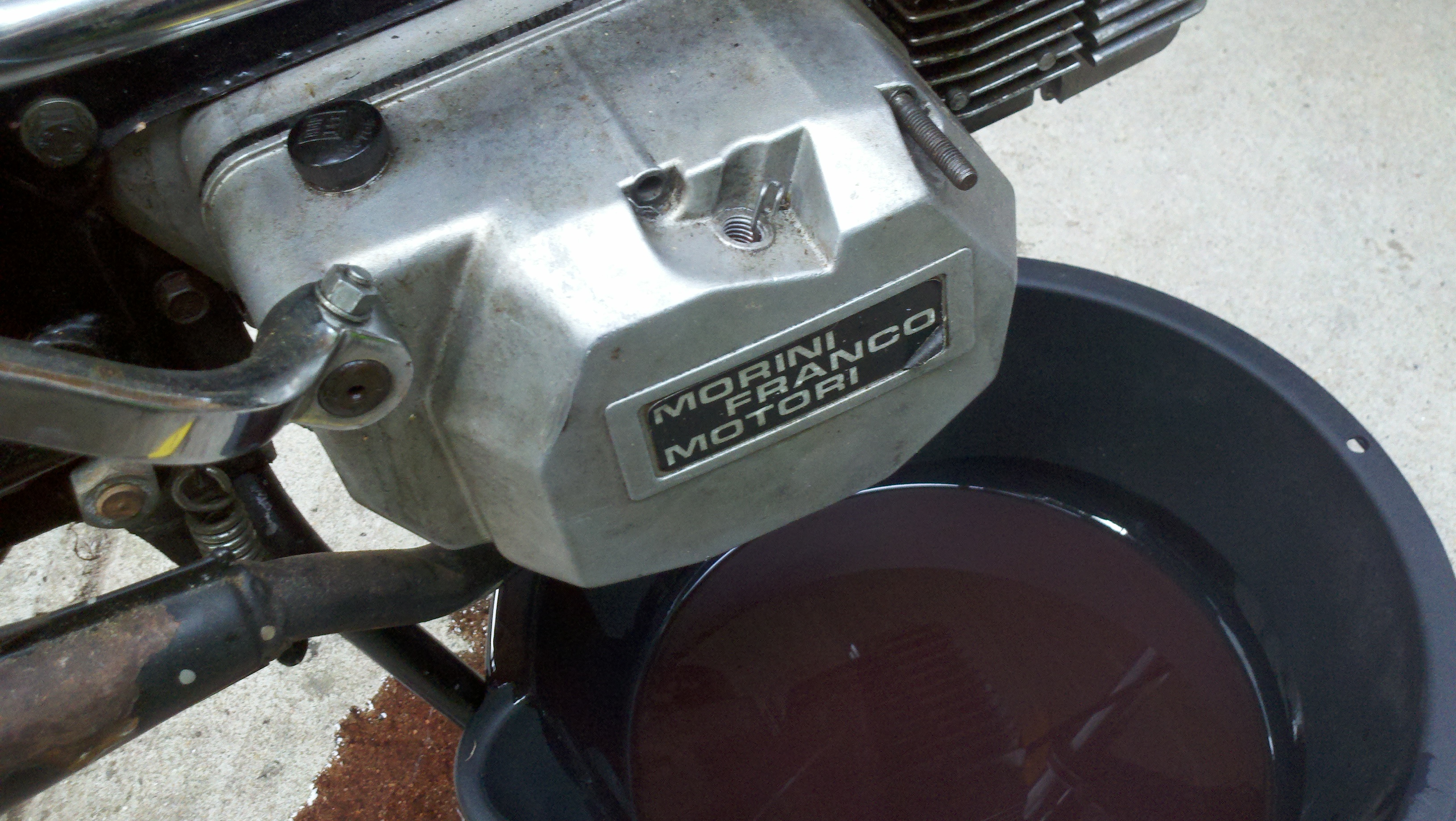

Oil everywhere! Next time I will drain the oil out with the bolts that are specially made for draining the oil out…

The clutch happens to be lubricated by being submerged in oil.  So as soon as I popped the last screw off, and pulled the clutch housing off, a huge purple puddle of oil appeared under the ‘ped, mostly in the oil bucket (yay foresight!).  Unfortunately, the teeny nubbin did not come out with the oil, and without removing the pedal arm the case was still stuck on pretty close o the engine casing.  So the next step was to try to wash it out with more oil, and hope for the best.

Bright LED lights. Don’t look at these; they will blind you!

Unfortunately, no combination of smacking the sides, running oil through the clutch, and grunting would coerces the tiny piece of aluminum to come out.  I even tried to locate it visually by sticking a handy strip LED flashlight near the gap in the case, and looking through the clutch hole.  But at this point it was getting pretty dark, so I wired up some huge LED panels (40W of them).  They did the trick!  I was set to work as late as I wanted.

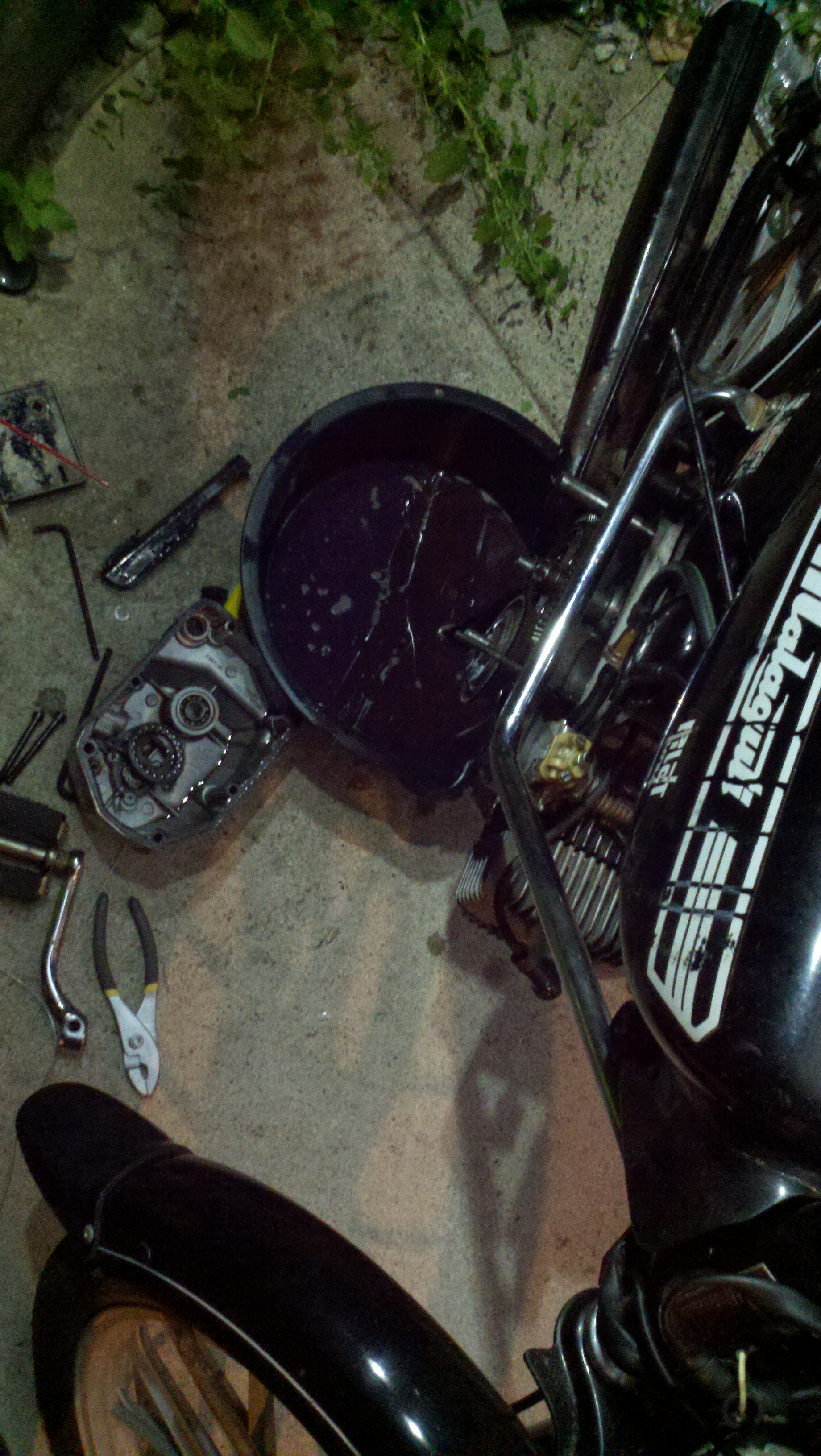

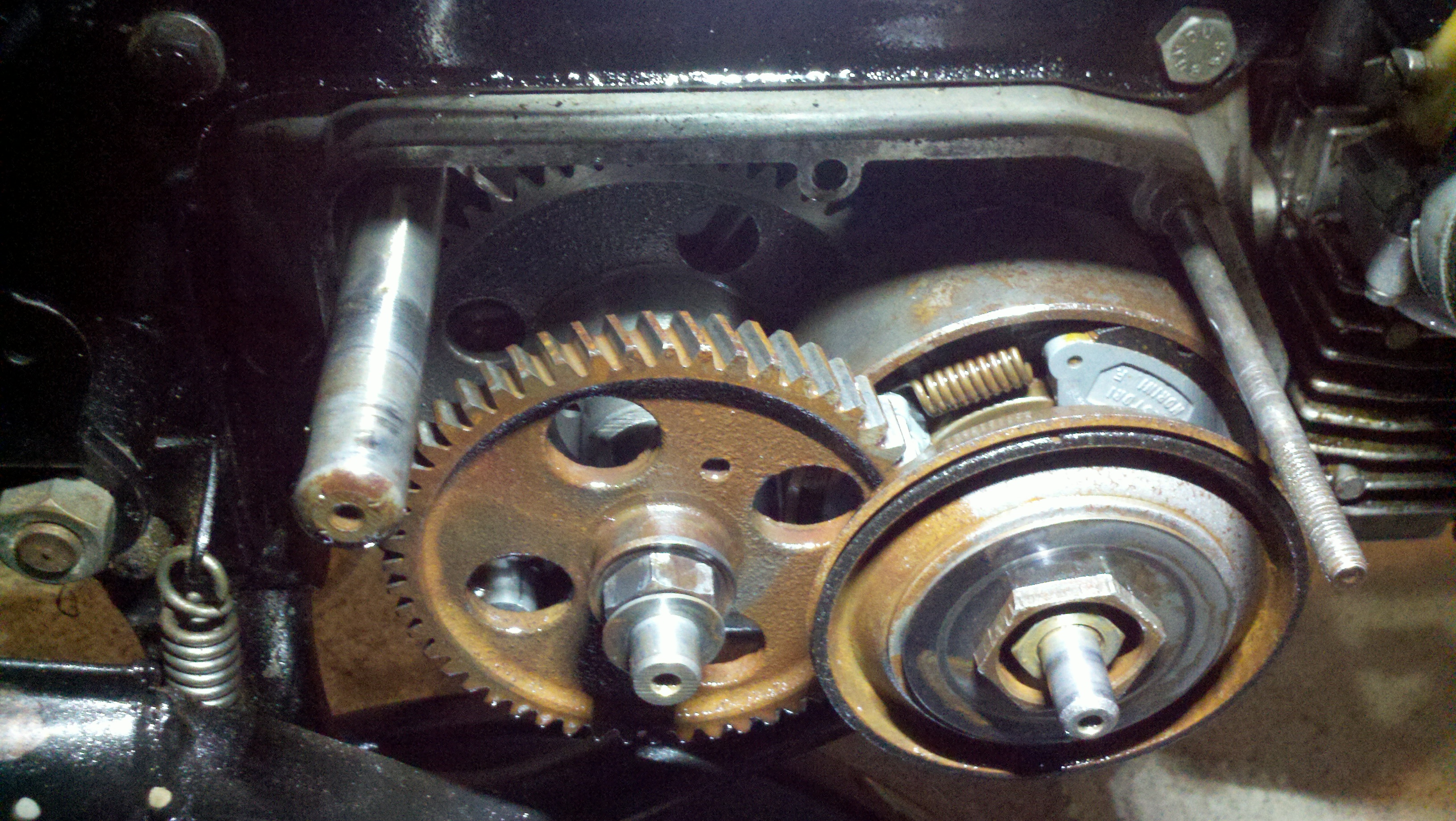

The clutch of the morini m02

The pedal needed to come off so I could completely remove the engine casing.  The pedal is held on by a wedge that his hammered in, and then a bolt is tightened to the other side to make sure it does not rattle loose.  Unfortunately, to remove the pin you have to smack the threaded side pretty good, and the pliers I were using to tap it out were not cutting it.  The next best thing, since I didn’t have a hammer, was to give it a good whack with an old lever lock.  Eventually, as my frustration built, I managed to whack the peg hard enough that it budged.  A few more taps and it was loose in my hand.  Moments later, the pedal arm was removed and the clutch cover followed soon after.  Unfortunately, this stripped the threads on the wedge that holds the pedal on.

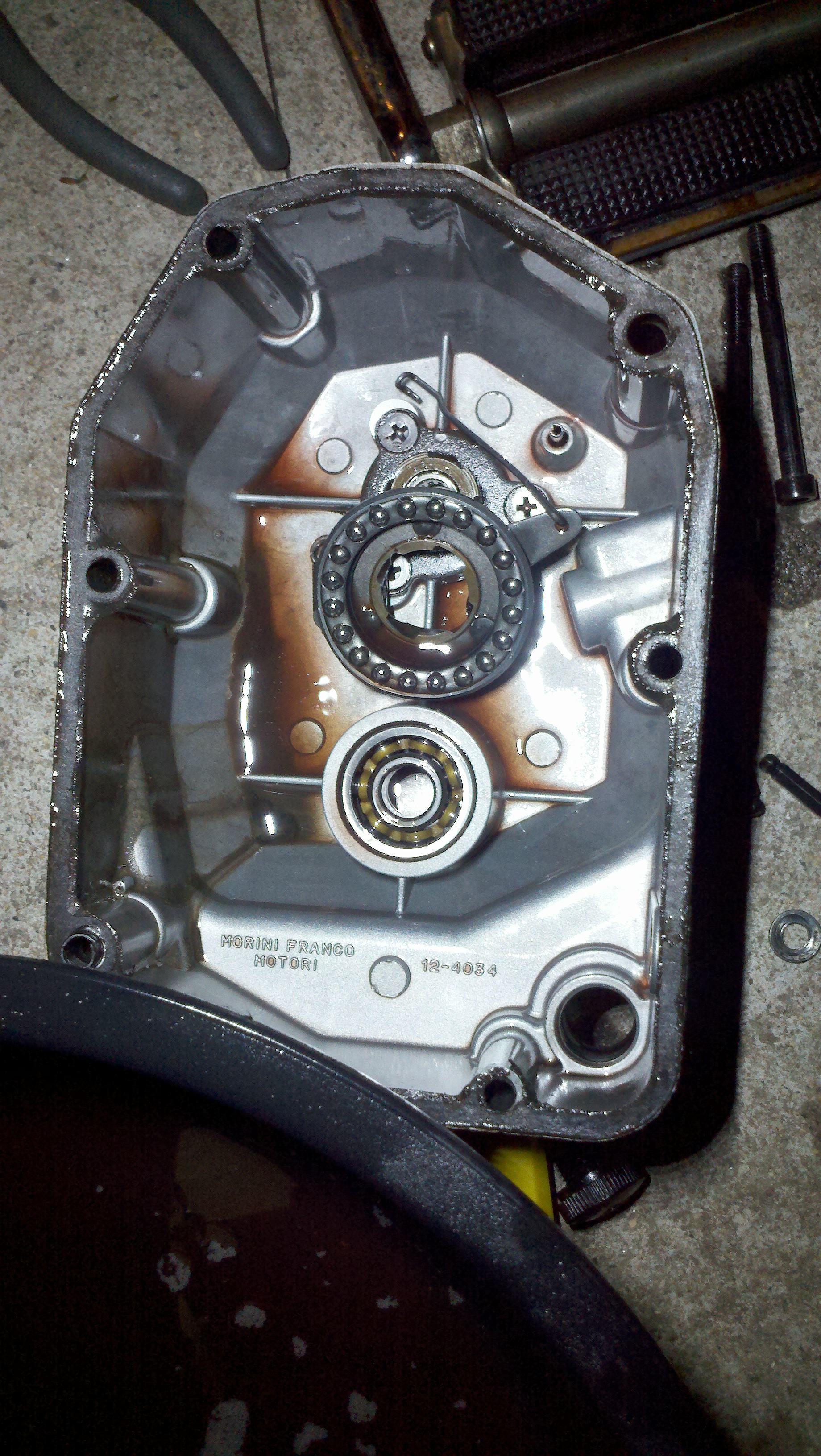

Clutch case and some bearings that came out with it! If you look hard you can find the nubbin next to the lower left bolt-hole casting.

With the clutch cover removed, it was easy to find the nubbin.  It had gotten stuck in a corner of the casing, in a bit of oil.  I grabbed it, and a few other offending bits and bobs out of the clutch casing.  After that, I returned the casing to its proper position, and bolted it back on.  Then I chased the threads on the pedal wedge with a file, and managed to bang it back into place.  The last thing to do was to fill it with oil, and then wire up a clutch cable in the form of a new bike shifter and a knarp.

With all of that done, it was time to test the new jet!  I took it out to the street, carefully engaged the clutch, and got it to start and idle, but only for a few seconds.  Based on the bumpy ride, I think the jet is too big.  However, it was a good day!  Things were capital A Accomplished, tools were improvised, and actual progress was made!

Morini MO2 Clutch Cable Replacement

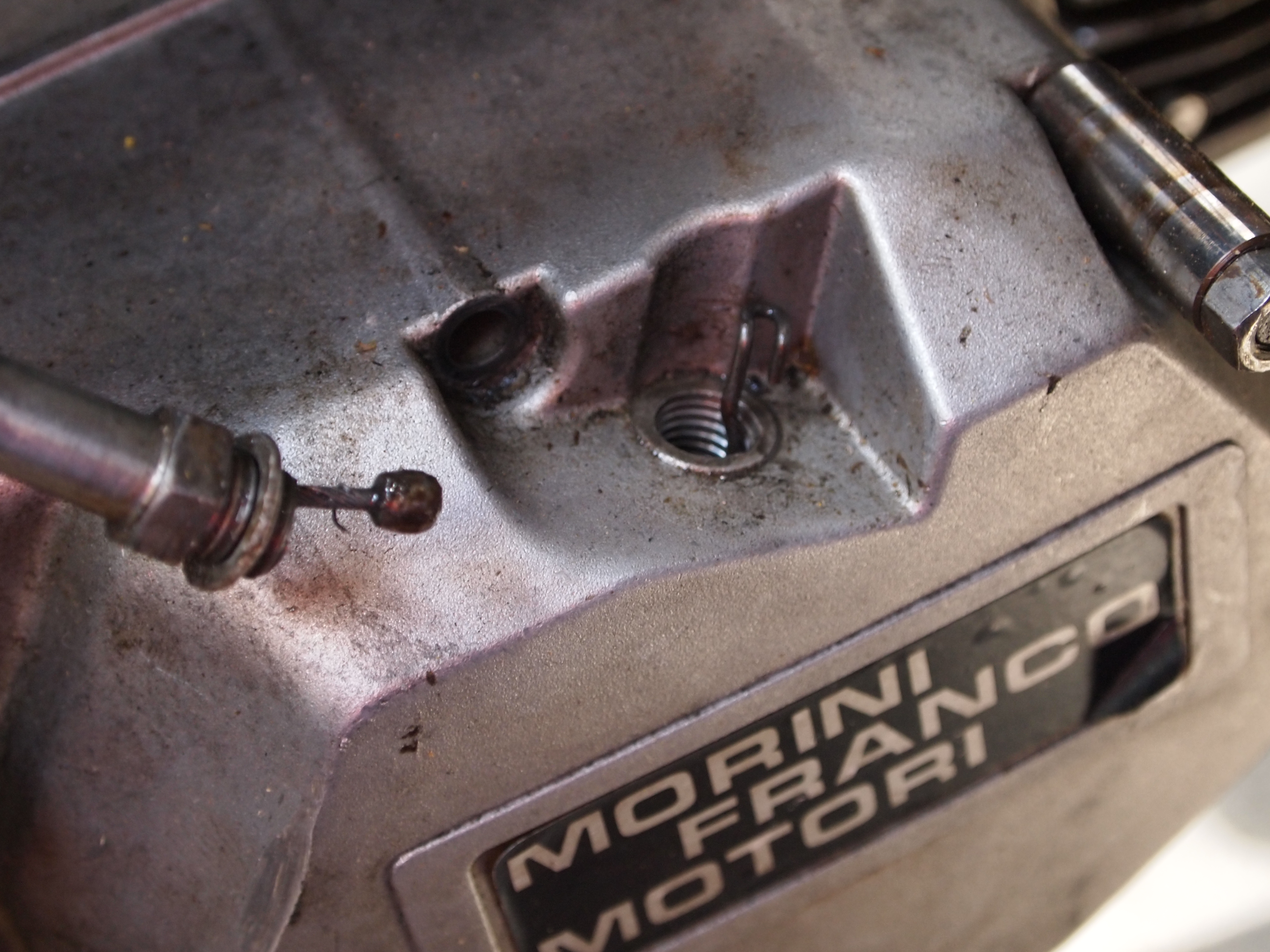

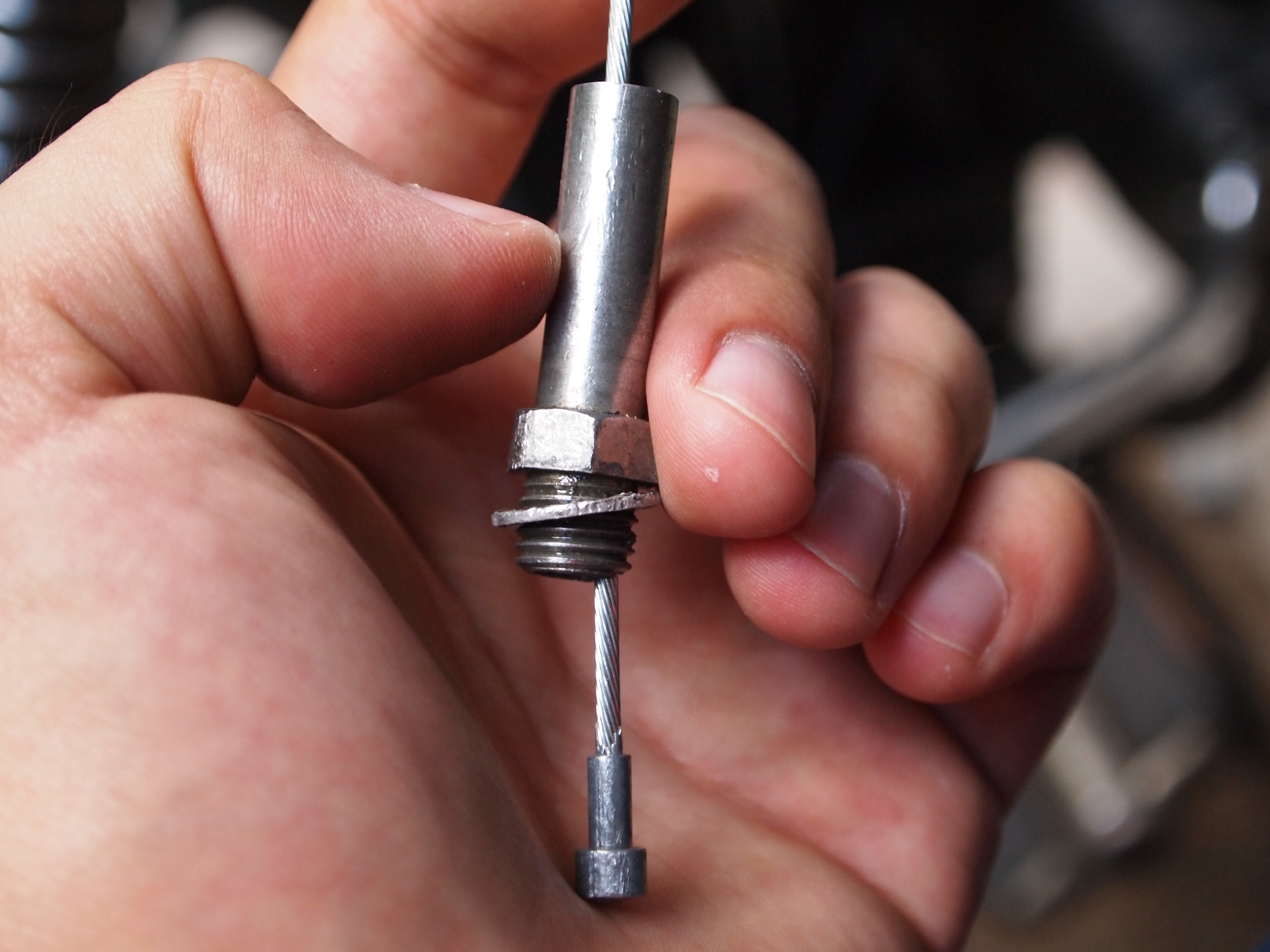

The right kind of clutch cable for an m02 morini, and the clever little clip that actually engages the clutch.

So I snapped the cable off the clutch lever of the Pilot the other day, and as a result, I went to San Fransisco to buy a new clutch cable (not really for that, but I did go to SF and get a clutch cable).  When I got home, I discovered two things:

  1. The people who designed the bike were not stupid
  2. I bought the wrong kind of cable!

The wrong kind of nubbin!

Grr.  The extra little bit above the very end nub prevents it from being able to be pulled, since the bottom nub makes the clip coming out of the engine rub against the guide.  Unfortunately, I had not removed the guide all the way and really given the system a peek until after I had bought the new cable.  Fortunately, a bike shifter cable is the perfect size, looks to be pretty strong, and is available in abundance in Somerville.  After picking one up, I managed to rig it up so that it can sort of engage the clutch.  It is tricky to get it engaged, but for the time being, yay testing!

Visited the In Real Life.

is this treatland?

I am in San Fransisco for reasons which are better covered in a later post, but it was a stroke of luck because I needed some parts from treatland, but I couldn’t buy them online.  So I just walked over to 3077 17th street in San Francisco…and proceeded to pace back and forth for a bit.

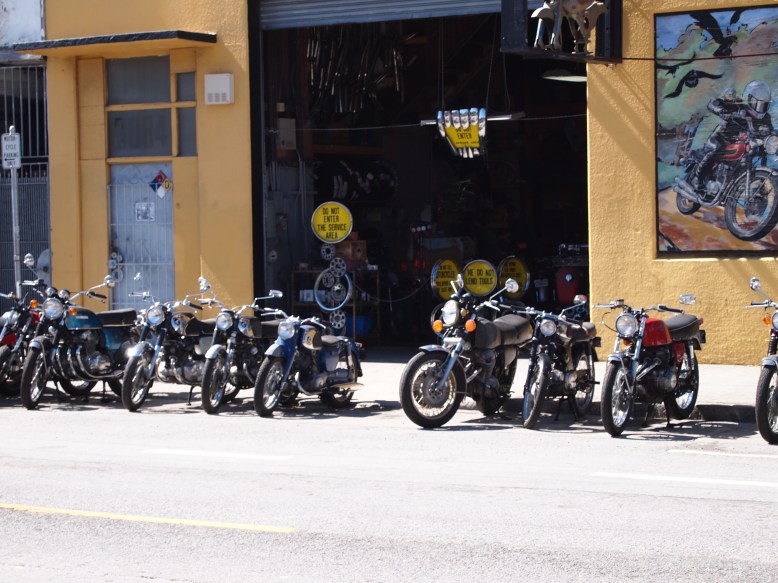

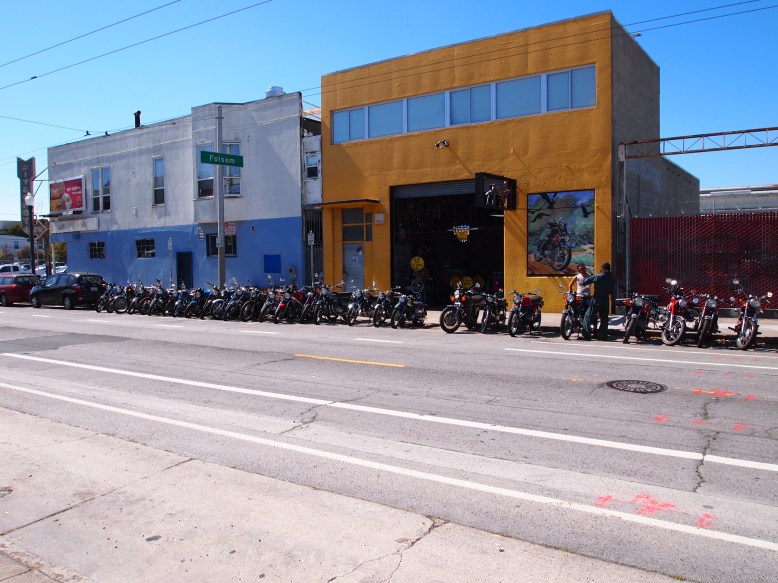

Not treatland. SRS BZNSS HONDAS

You would think that this was treatland, but it wasn’t.  It is apparently a honda bike shop, and they give you a weird look when you walk by because they are SRS BUSINESS.  They also have a nice sign that says something about not working on mopeds, not lending tools and to stay out of the shop.  I thought to myself, surely this couldn’t be treatland…where are the treats?

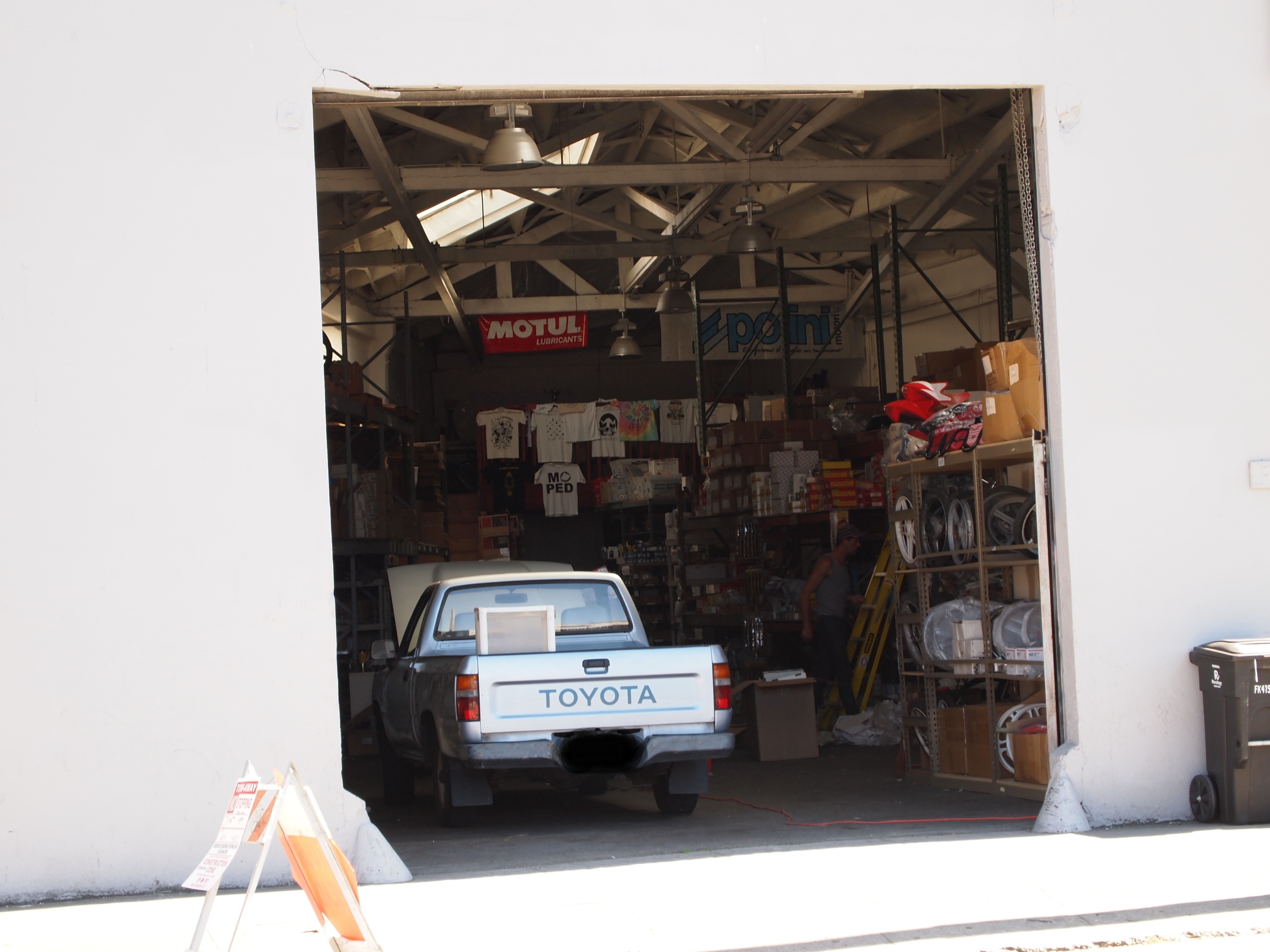

Treats is here!  In the building marked SH FRANK AND CO.

As I mustered up the courage to go ask them for moped parts, I saw someone pull into a garage across the street on a Derbi.  Ah, I thought, this must be the treatland.  And so it was!  I got a knarp, a clutch cable, a tail light, and a bunch of jets.  Sweet!

And I even saw this sign…

Treat Street

Malaguti Update: 6/7/2012

Got the ‘guti running!  Good stuff.  Vroom vroom.  Or maybe like, vrrrr….

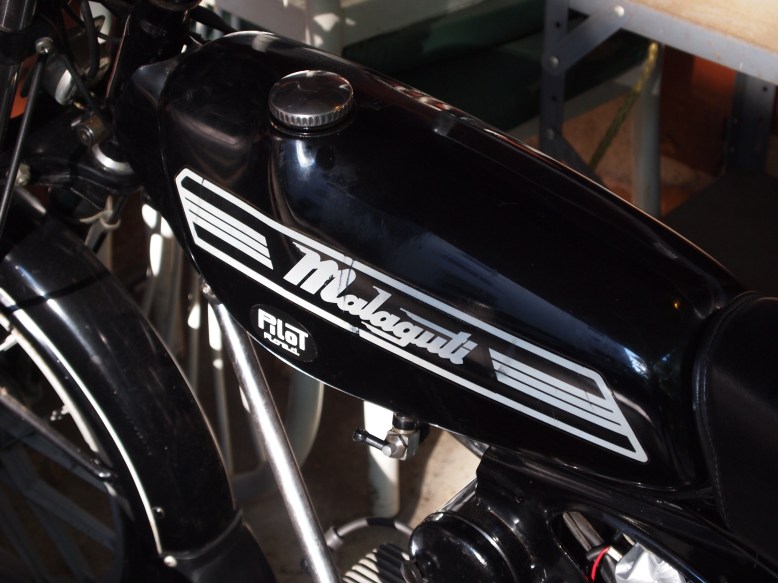

I hope I look this good when I turn 40!

There are still a few slight issues, but I got it to run by adjusting the spark gap with some .4 mm metal sheeting, which I found at sprout.  I think it is for weather proofing.  The other suggestion for a feeler gauge stand in that I got was a cereal box, so the piece of metal seemed like a decent option, given that it measured .34-.41 mm on some digital callipers, and the gap should be .35-.4 mm for a Morini MO2 (M02?) engine.

A picture showing the electrical SNAFU

Outstanding issues are now that the electrical system is in a small SNAFU, because I hard-wired EVERYTHING, disconnected the killswitch, the tail light is broken, and the lighting coil is not tested or installed.  Also, the carb needs to be re-jetted and the idle adjusted, since it was drilled out by the previous owner.  And the last thing is that the clutch cable broke!  Oh no!  Better go to treats.  Oh, yea and the pipe is clogged.

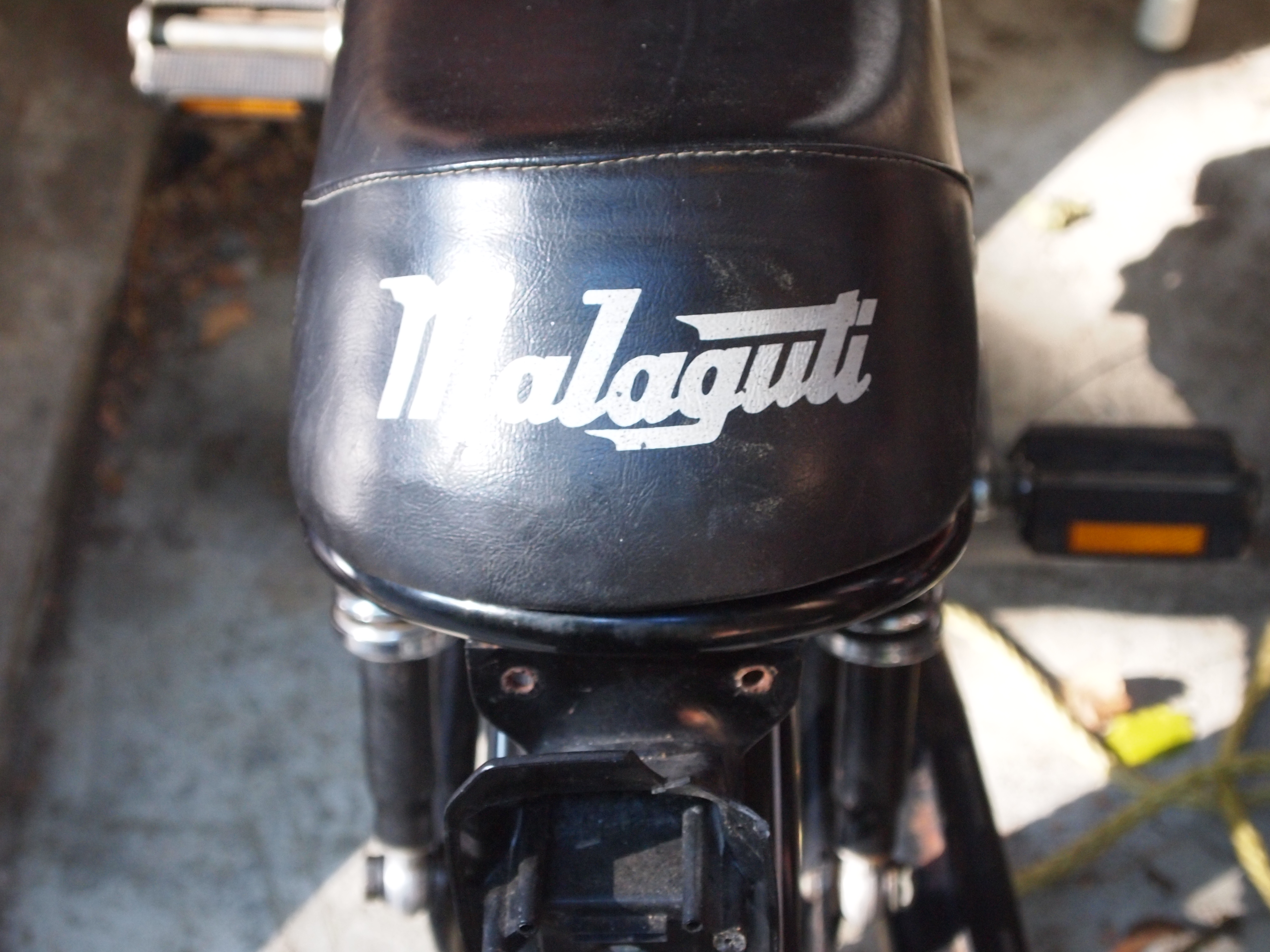

Whats missing? The tail light is missing…

Other than all that, I got it moved to the new workspace okay by yanking the clutch cable real hard with my left hand, giving it gas with my right hand, and peddling really really hard.  I got all the way down one or two blocks before I ran into a one way street in the other direction and the engine died again.  Bugger.

Malaguti Pilot: A New Project

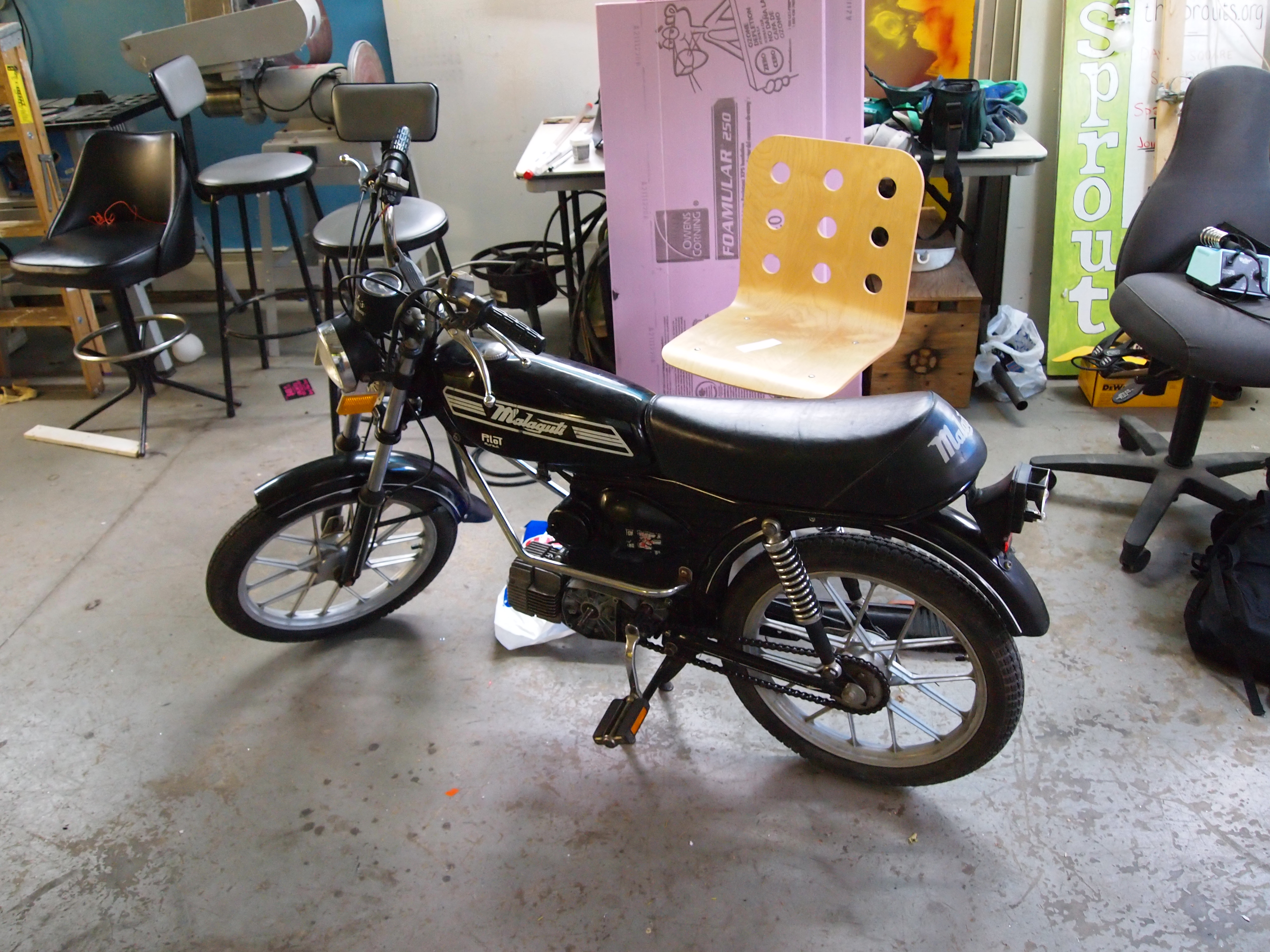

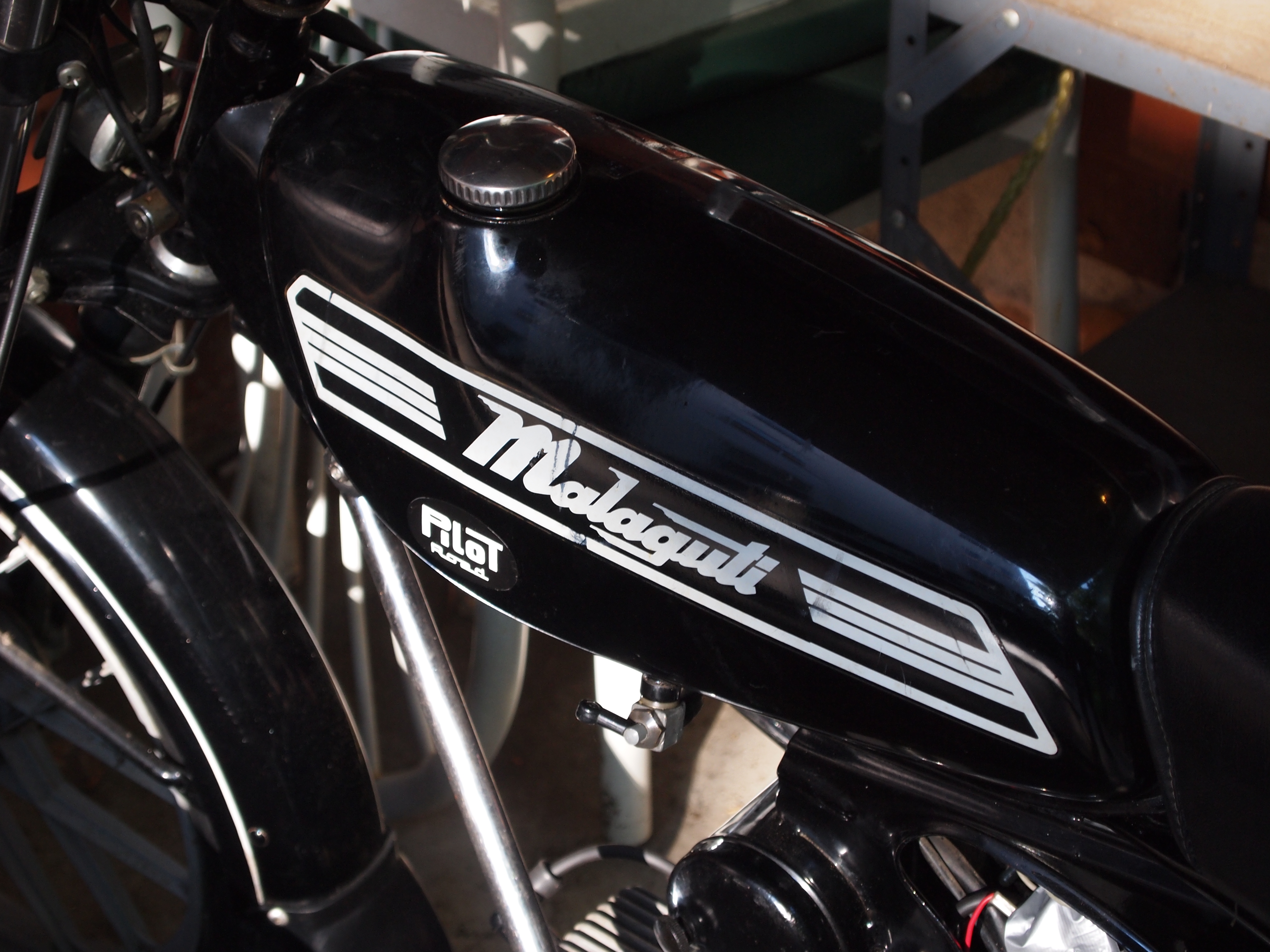

The ” ‘guti “, a malaguti pilot from the 70’s

I picked this moped up from kHz Garage in Allston- not running in its current condition, but with a few donor electrical and fuel related parts, it had started up, according to the previous owners.  I pedal/push/pulled it all the way from allston, up through Harvard and porter square to sprout to sit down with it for a few days to get it repaired.  It was a long and very exhausting trip, but the next day I got to look at some of the things that were not functioning.

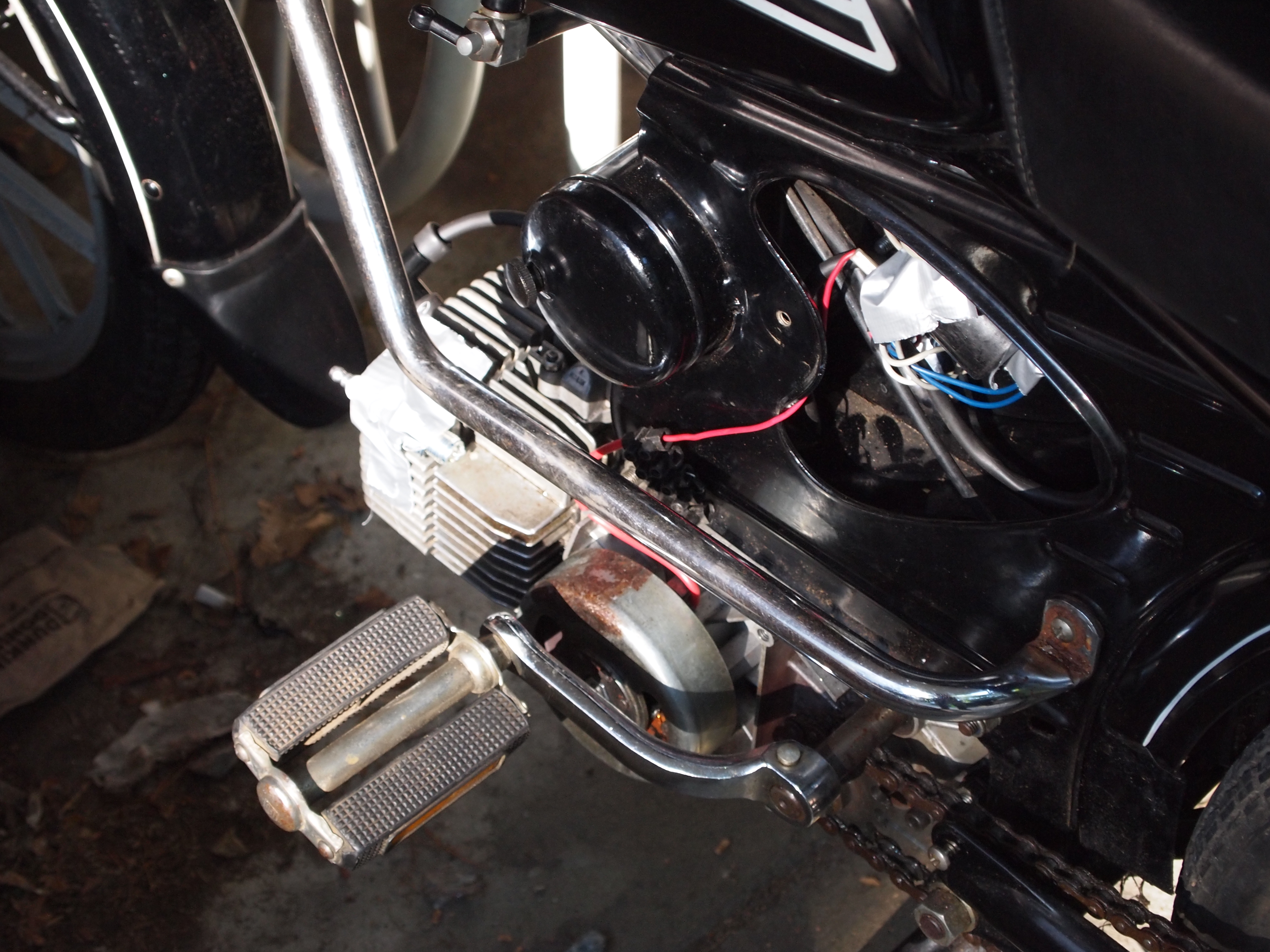

Something is missing here…

Something is missing here.  Some kind of tube to convey liquid fuel (gasoline+2 stroke premix) to the carb.  Ah, a fuel line and fuel filter are in order.  In short order, the magic of 3/16 in (4mm, I believe) fuel line and a cheap, $5 filter fixed this problem.

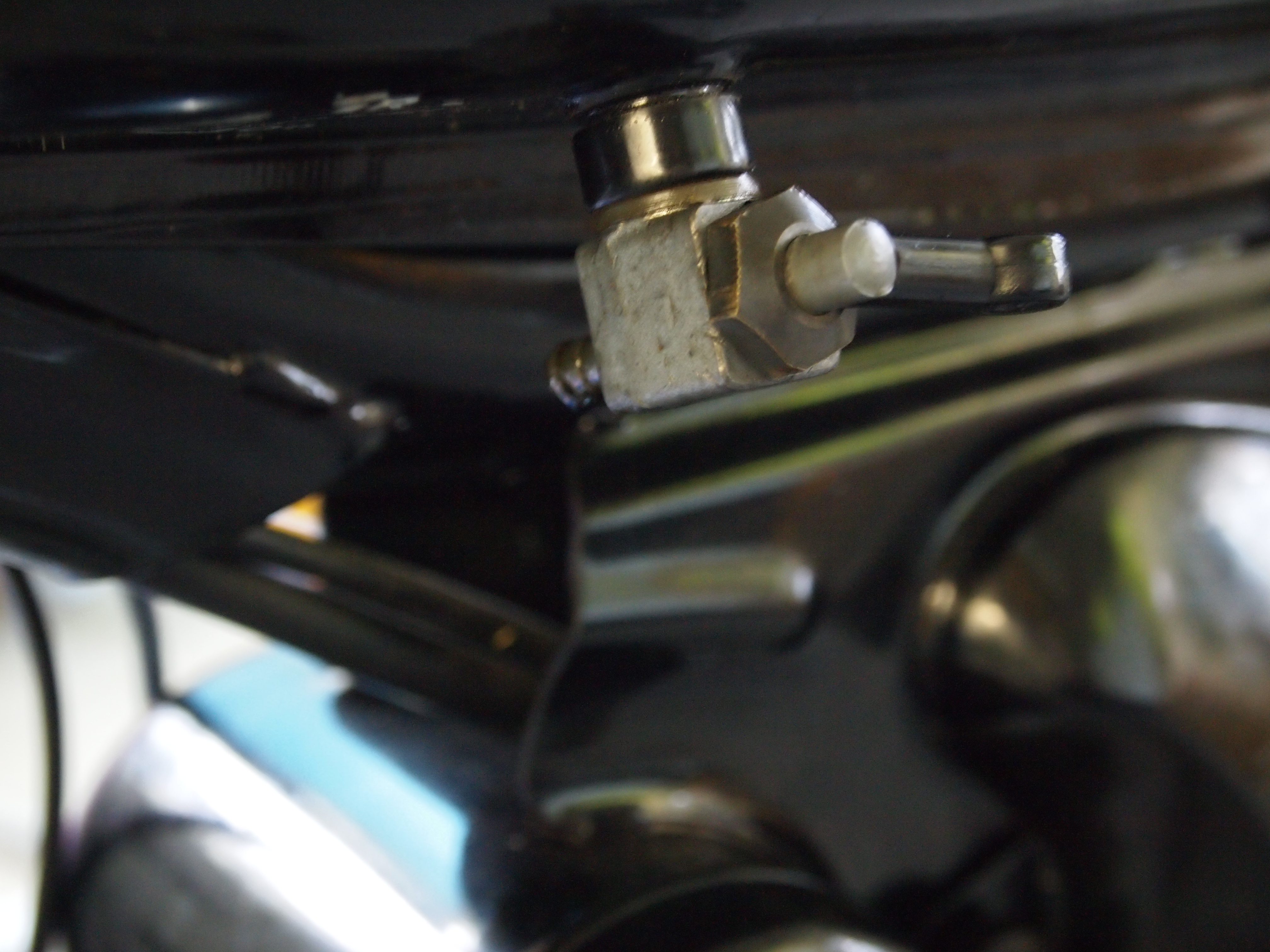

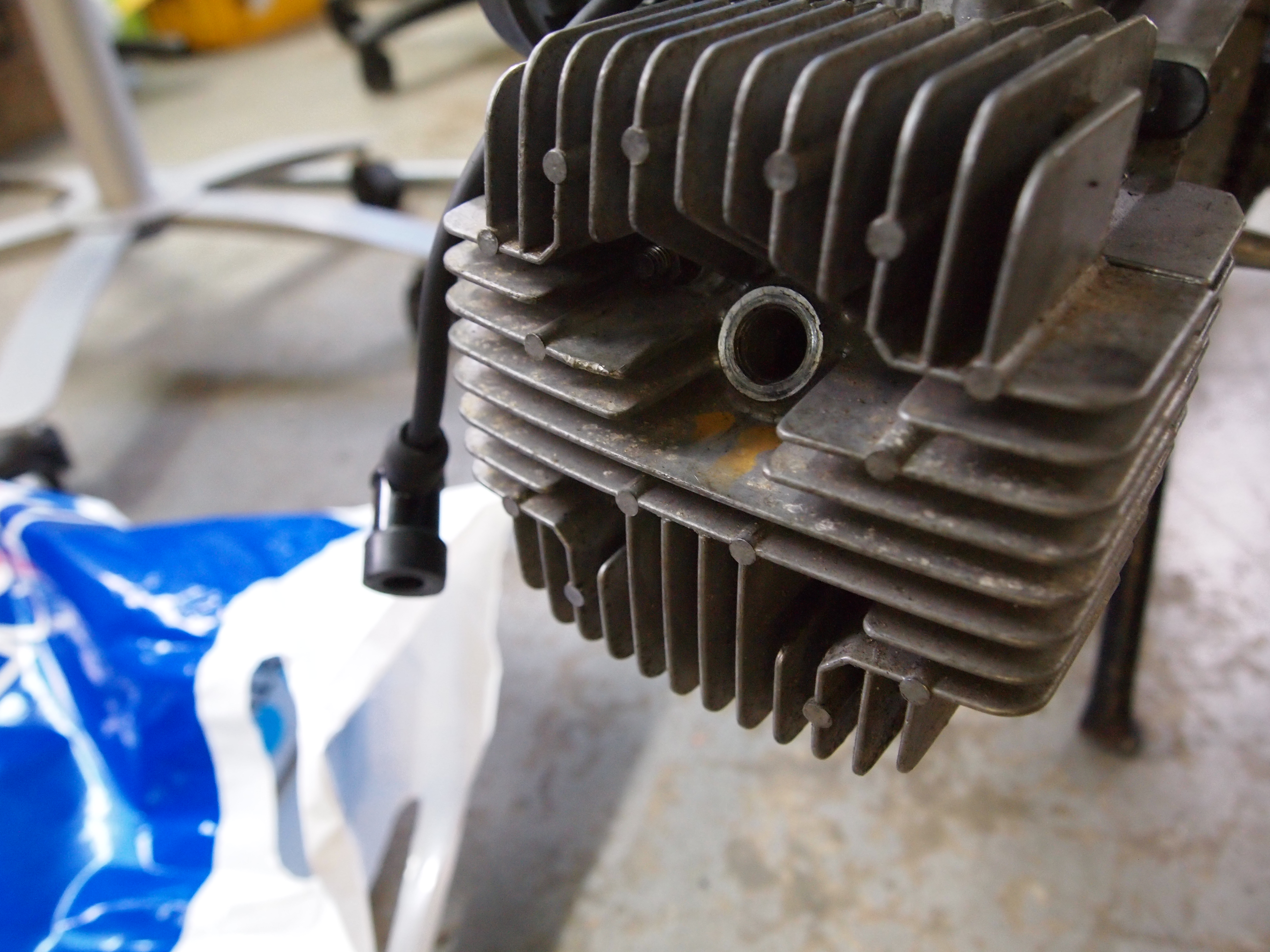

Something is missing here too! What could it be…?

I got a new spark plug boot as part of the bike, but I needed some B6HS spark plugs for the Franco Morini Motori MO2 (motor).  So I got some and installed one.

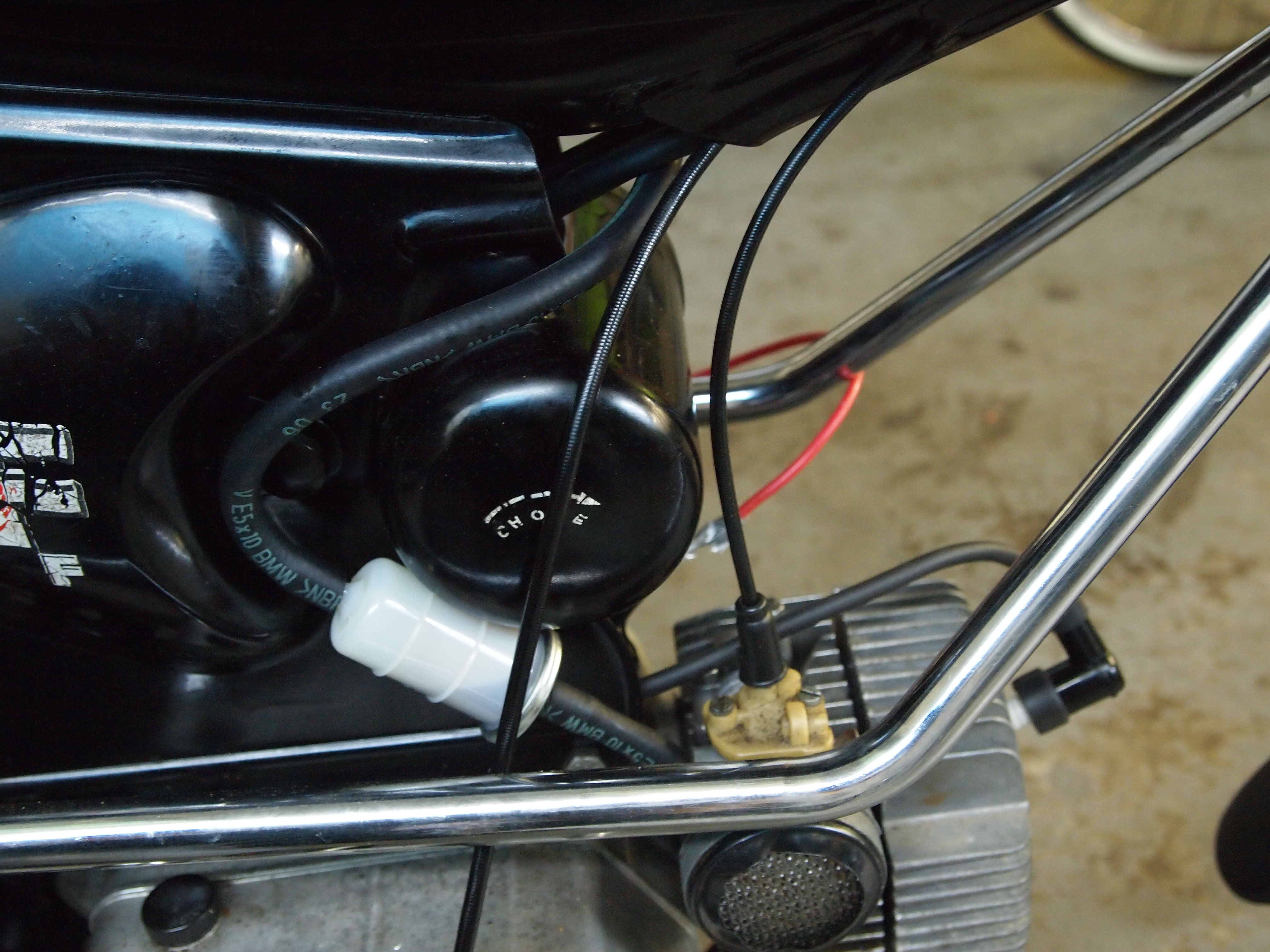

fuel line and filter routed around stash box


Here you can see the fuel line and filter mounted around the stash box, near the side panels of the body.  The stash box is pretty sweet- it looks like a good place to stash some extra fuel line, a fresh plug, or maybe some small tools.  In the background you can see the spark plug mounted at a funky angle.  Way Rad!

Well, that is all for now.  There is no spark since I still have not wired the magneto yet- once I do that it is time to test the whole system!
