Thermal Camera Redux

IMG_20160713_231049674

After chilling out in my parts box for a few years, I decided to drag out my old panasonic GRID EYE thermopile array, because lets face it, we all want thermal vision.  I felt like last time I worked with it, I did not do the sensor justice.

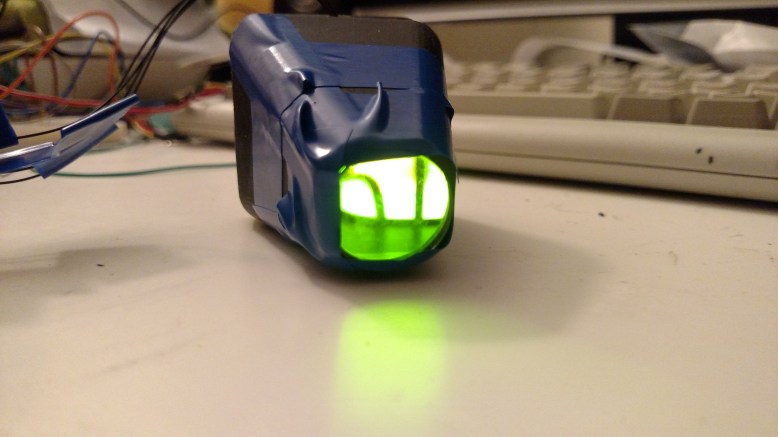

So I whipped up a quick model for an enclosure.  I was not sure how I wanted it to look, but I settled with something like a pana-view stero viewer.  The device really does not need to be any bigger.

After printing out the enclosure and writing some code, it is working!  But I ended up using the lens and the enclosure shape for the gopro viewfinder instead.  I guess I will have to do something else with this sensor.
